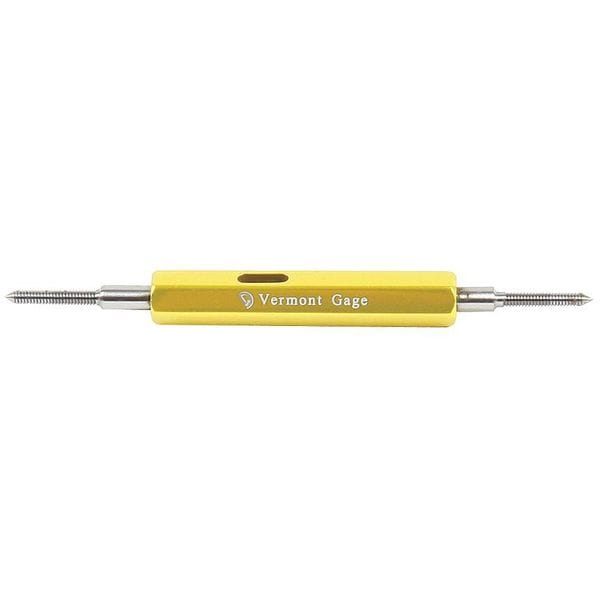

Go/No Go Set Plug Assy, M1.6 x 0.35 6g
- Mfr # 372101030
- Zoro # G1238745
product price:Â
$
307.99
/ea
Free Shipping & Returns
Key Features
Type
Go/NoGo (Plus/Minus)
Class
6g
Material
Tool Steel
Overall Length
2-5/16"
Thread Type
Metric
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 372101030
- Zoro #
- G1238745
- UPC #
- 662631520137
- Country of Origin
- United States
- Item
- Threaded Plug Gauge Assembly Set
- Type
- Go/NoGo (Plus/Minus)
- Class
- 6g
- Material
- Tool Steel
- Thread Type
- Metric
- Tolerance
- Class X
- Includes
- Certificate of Accuracy with NIST Traceable
- Meets/Exceeds
- ASME B1.16M (Metric M Series Screw Threads); ASME B47.1; ISO 17025
- Application
- Inspect External Product Unified And M Series Of Threads On Screws, Bolts, Studs; Inspect, Calibrate And Set Adjustable Thread Ring Gages
- Tolerance Class
- X
- Thread Direction
- Right Hand
- Handle Design
- Double End
- Standards
- ASME B1.16M
- Included Certification
- Certificate of Accuracy with NIST Traceability
- Gauge Material
- Tool Steel
- Hardness
- RC 60-62
- Gauge Type
- Go/No-Go (Plus/Minus)
- Included Handle
- Taperlock 000
- Thread Class
- 6G
- Handle Color
- Light Blue
- Long Form Calibration Certificate
- No
- Shell Material
- Tool Steel
- Traction Material
- Tool Steel
Dimensions
- Overall Length
- 2-5/16"
- Thread Size
- M1.6 X 0.35
- Handle Length
- 1-1/2"
- Gauge Length - Go Member
- 5.60 mm
- Pitch Diameter - No-Go Member
- 1.29 mm
- Gauge Length - No-Go Member
- 5.60 mm
- Pitch Diameter - Go Member
- 1.35 mm
- Dimension Type
- Metric
Description
Threaded Plug Gauge Assembly Set, Dimension Type Metric, Gauge Type Go/No-Go (Plus/Minus), Handle Design Double End, Included Handle Taperlock 000, Thread Class 6G, Thread Size M1.6 x 0.35, Thread Type Metric, Tolerance Class X, Gauge Length - Go Member 5.60 mm, Gauge Length - No-Go Member 5.60 mm, Gauge Material Tool Steel, Handle Color Light Blue, Handle Length 1 1/2 in, Hardness RC 60-62, Included Certification Certificate of Accuracy with NIST Traceability
