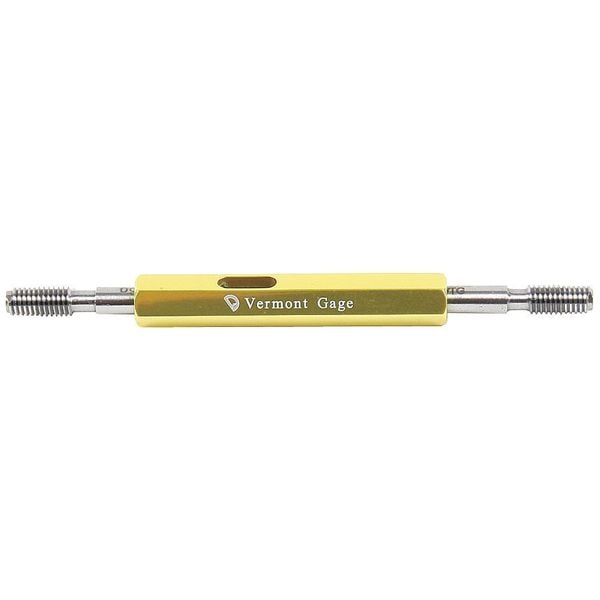

Vermont Gage Go/No Go Set Plug Assy, M4.0-0.70 6g 372111530 - main

Go/No Go Set Plug Assy, M4.0-0.70 6g

  • Mfr # 372111530

  • Zoro # G1404724

product price: $310.99
/ea
Free Shipping & Returns

Key Features

Type
Go/NoGo (Plus/Minus)
Class
6g
Material
Tool steel
Overall Length
3-5/16"
Thread Type
Metric
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
372111530
Zoro #
G1404724
UPC #
662631521189
Country of Origin
United States

Dimensions

Overall Length
3-5/16"
Thread Size
M4 X 0.7
Handle Length
2"
Gauge Length - No-Go Member
10.30 mm
Dimension Type
Metric
Pitch Diameter - Go Member
3.52 mm
Pitch Diameter - No-Go Member
3.43 mm
Gauge Length - Go Member
10.30 mm

Details

Item
Set Thread Plug Gage
Type
Go/NoGo (Plus/Minus)
Class
6g
Material
Tool steel
Thread Type
Metric
Tolerance
Class X
Meets/Exceeds
ASME B1.16M (Metric M Series Screw Threads); ASME B47.1; ISO 17025
Includes
Certificate of Accuracy with NIST Traceable
Application
Inspect External Product Unified And M Series Of Threads On Screws, Bolts, Studs; Inspect, Calibrate And Set Adjustable Thread Ring Gages
Handle Color
Yellow
Thread Direction
Right Hand
Included Handle
Taperlock 0
Tolerance Class
X
Gauge Type
Go/No-Go (Plus/Minus)
Hardness
RC 60-62
Thread Class
6G
Gauge Material
Tool Steel
Handle Design
Double End
Standards
ASME B1.16M
Included Certification
Certificate of Accuracy with NIST Traceability
Long Form Calibration Certificate
No

Description

Threaded Plug Gauge Assembly Set, Dimension Type Metric, Gauge Type Go/No-Go (Plus/Minus), Handle Design Double End, Included Handle Taperlock 0, Thread Class 6G, Thread Size M4 x 0.70, Thread Type Metric, Tolerance Class X, Gauge Length - Go Member 10.30 mm, Gauge Length - No-Go Member 10.30 mm, Gauge Material Tool Steel, Handle Color Light Blue, Handle Length 2 in, Hardness RC 60-62, Included Certification Certificate of Accuracy with NIST Traceability, Long Form Calibration Certificate No
