  11. 60" x 48" Aluminum Truck Dockboard, 10000 lb Capacity

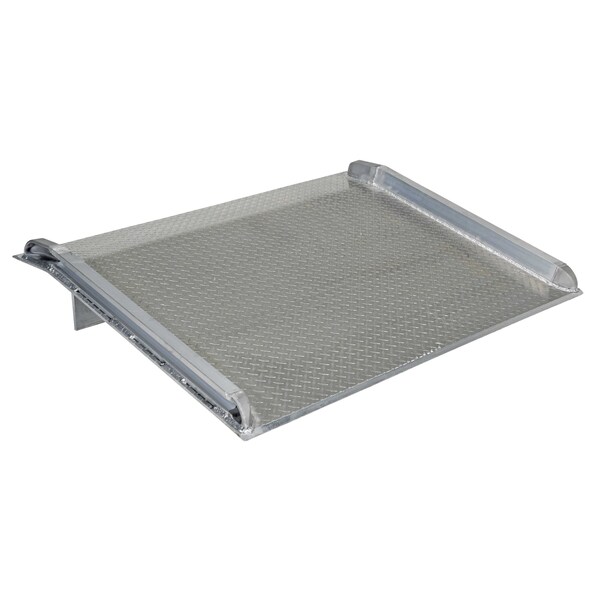

Vestil 60" x 48" Aluminum Truck Dockboard, 10000 lb Capacity BTA-10006048 - main

60" x 48" Aluminum Truck Dockboard, 10000 lb Capacity

  • Mfr # BTA-10006048

  • Zoro # G303505520

product price: $1,393.99
/ea
Additional $120.00 delivery surcharge applies per item.
See details

Key Features

Dock Shelter Item
Aluminum Truck Dockboards (Welded Aluminum Curbs)
Load Capacity
10,000 lb.
Overall Length
48 in.
Overall Height
12-1/4 in.
Overall Width
60 in.
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BTA-10006048
Zoro #
G303505520
UPC #
691215007603
Country of Origin
United States

Dimensions

Overall Length
48 in.
Overall Height
12-1/4 in.
Overall Width
60 in.
Overall Depth
48 in.
Width
60
Thickness
1/2 in.
Size
48 x 60 x 12.25
Length
48
Usable Width
54-1/2 in.
Depth
48
Height
12.25

Details

Dock Shelter Item
Aluminum Truck Dockboards (Welded Aluminum Curbs)
Item
60x48 Alum. Truck Dockboard 10k
Load Capacity
10,000 lb.
Material
Aluminum
Includes
Welded Alumin.um Lockin.g Legs
Weight
169
Standards
OSHA : 1910.30 (a); ANSI : MH 30.2
Color
Silver

Description

The Aluminum truck dock board is engineered and built to maximize safety while handling heavy fork trucks and loads. Locking legs prevent movement during loading and unloading operations. Locking legs are uneven to allow the dock board to sit canted, while not in use, for easier pickup by fork trucks. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. When using three-wheeled fork trucks order dock board with capacity at least four-times the lifting capacity of fork truck. The width of the dock board should be at least 15 (in.) wider than the load or equipment passing between the curbs. Bend is 11 degrees and 9" from the edge and the legs are 12" from the edge. Manufactured in compliance with OSHA.

Documents & Resources

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
