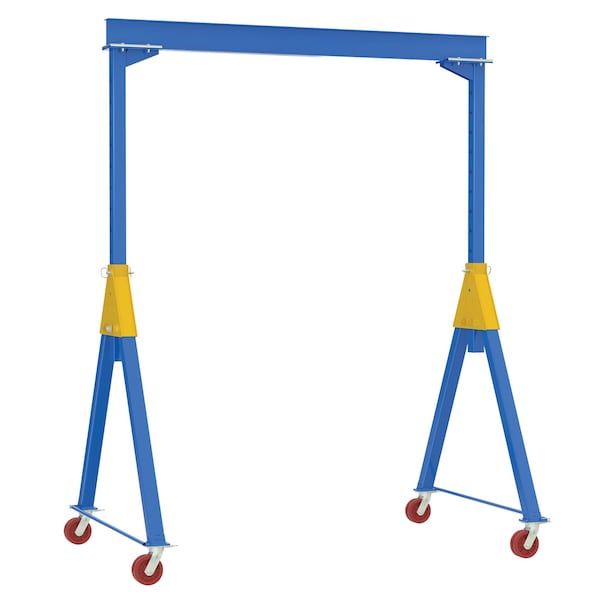

Knockdown Crane 20'x16' Iron 6K
Mfr # AHSN-6-20-16-VG
Zoro # G505389973
product price: $5,718.99
/ea
Item requires special delivery charges. A $1,365.00 per item surcharge will be applied.
Key Features
Load Capacity
6,000 lb.
Max. I Beam Height
205-1/4 in.
Gantry Crane Depth
239-3/4 in.
I Beam Flange Width
6-1/2 in.
Material
Steel
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
AHSN-6-20-16-VG
Zoro #
G505389973
UPC #
691215366205
Country of Origin
United States
Dimensions
Max. I Beam Height
205-1/4 in.
Gantry Crane Depth
239-3/4 in.
I Beam Flange Width
6-1/2 in.
I Beam Height
12-5/16 in.
Wheel Diameter
8 in.
Wheel Width
3 in.
Height Adjustment
6 in.
Height
205-1/4 in.
Details
Item
KD Gantry Crane 20'x16' Cast Iron 6K
Load Capacity
6,000 lb.
Material
Steel
Standards
CMAA and ANSI specifications
Includes
(4) V-Groove Cast Iron Casters
Caster Material
Cast Iron
Finish
Painted
Color
Blue
Description
The adjustable height steel gantry crane is designed for transporting and positioning materials along the beams length. The cranes beam height can be adjusted to better conform to the working conditions making it both ergonomically friendly and cost effective. Unit comes standard four (4) V-groove casters, allowing for quick movement and positioning adjustments. Height is adjustable in 6" increments. Do not move units while loaded. Hoist and trolley can be ordered separately. A painted blue finish protects the unit from . Designed for semi-permanent or permanent applications.
