  13. SPREADER BEAM, 10K CAPACITY

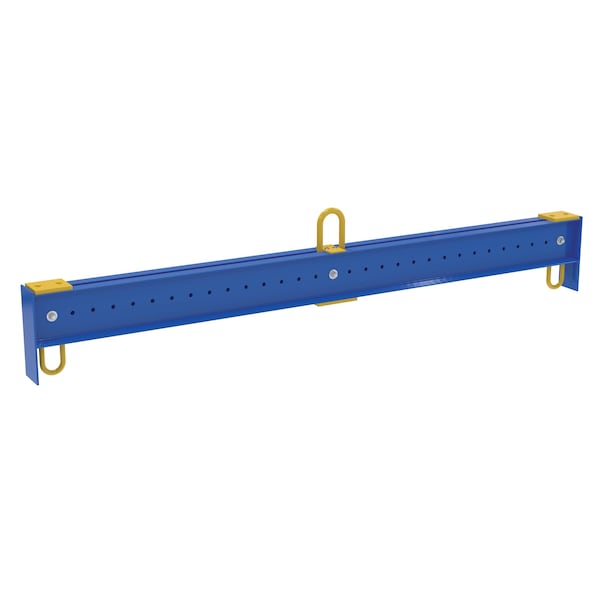

Vestil SPREADER BEAM, 10K CAPACITY SBM-BFB-100-10 - main

SPREADER BEAM, 10K CAPACITY

  • Mfr # SBM-BFB-100-10

  • Zoro # G4862788

product price: $1,549.99
/ea
Item requires special delivery charges. A $330.00 per item surcharge will be applied.

Key Features

Material
Steel
Color
Blue
Max. Spread
120"
Min. Spread
24"
Overall Length
128-1/2 in.
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SBM-BFB-100-10
Zoro #
G4862788
UPC #
691215328043
Country of Origin
United States

Dimensions

Overall Length
128-1/2 in.
Overall Height
25-1/2 in.
Overall Width
6-1/2 in.
Width
6.5
Bail Opening Width
Upper: 4 in. / Lower: 3 in.
Lifting Height Max.
25-1/2"
Bail Opening Height
Upper: 7-1/2 in. / Lower: 5-3/4 in.

Details

Item
Spreader Beam 10K Cap
Material
Steel
Color
Blue
Max. Spread
120"
Min. Spread
24"
Load Capacity
10,000 lb.
Includes
Includes one upper bail and two specialty designed bail/sling holders. Bails are adjustable in 4" increments. The bails slide between two C-channels
Finish
Powder Coat
Features
Designed to lift and move uneven and awkward loads; Welded steel construction for heavy duty performance; Adjustable bail to fit a variety of sizes; Large capacity for use with items both large and small
Standards
ASME B30.20-1993
Operation
Overhead Lifting Devices
For Use with Trolley
Material Handling

Description

An Adjustable spreader beam model lifts uneven loads and keep them level with increased safety. Includes one upper bail and two specialty designed bail/sling holders. Bails are adjustable in 4" increments. The bails slide between two C-Channels. Meets ASME B30.20-1993 standard. Baked-in powdercoated toughness. Polyester lifting slings sold separately.
