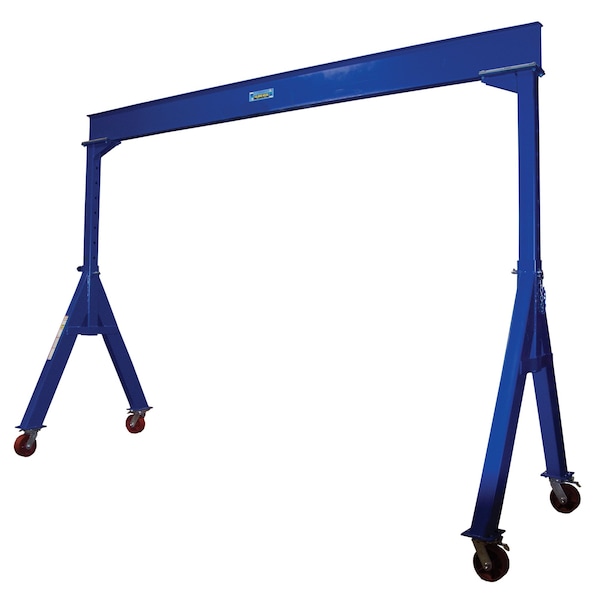

Steel Gantry Crane, 15' x 10'

  • Mfr # AHS-10-15-10

  • Zoro # G703505526


product price: $5,703.99
/ea
Item requires special delivery charges. A $355.00 per item surcharge will be applied.

Key Features

Load Capacity
10,000 lb.
Max. I Beam Height
132-1/4 in.
Gantry Crane Depth
179-3/4 in.
I Beam Flange Width
4 in.
Material
Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
AHS-10-15-10
Zoro #
G703505526
UPC #
691215066105
Country of Origin
United States

Dimensions

Max. I Beam Height
132-1/4 in.
Gantry Crane Depth
179-3/4 in.
I Beam Flange Width
4 in.
Height
132-1/4 in.
Height Adjustment
6 in.
Width
64.5
I Beam Height
12-1/8 in.
Wheel Diameter
8 in.
Wheel Width
3 in.

Details

Item
Stl Gantry Crane 15'x10' Ductile Stl 10K
Load Capacity
10,000 lb.
Material
Steel
Color
Blue
Includes
(4) Ductile Steel Casters
Standards
CMAA and ANSI specifications
Caster Material
Ductile Steel
Finish
Painted

Description

The industrial steel Gantry crane is designed for transporting and positioning materials along the beams length. The solid steel construction will provide years of service. Unit comes standard four (4) position locking swivel casters with roller bearings. Locks the rigging in 1 of 4 positions; you can set the wheels and push the gantry crane forward, back, left or right. There is an optional total locking casters that lock the rigging in any position and locks the wheel from rotating. More economical and flexible than permanent cranes and features a quick setup design. Painted blue finish with warning and operating stickers and complete owner's manual. Designed for semi-permanent or permanent applications. Requires assistance from fork truck to set-up.

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
