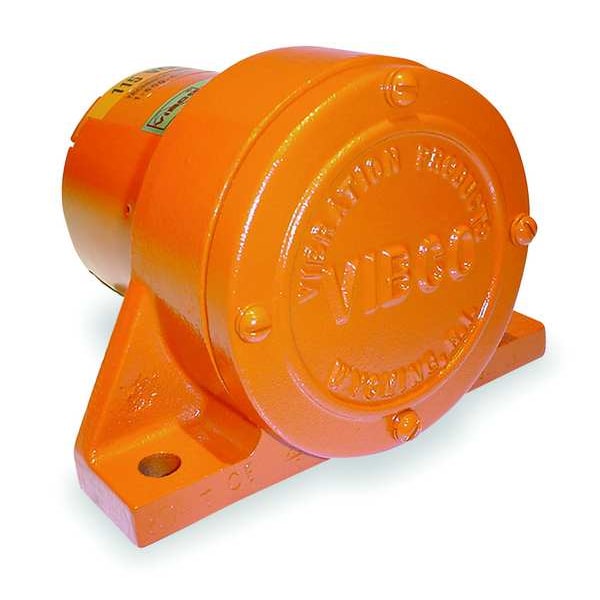

Vibco Electric Vibrator, 0.6/0.24 A, 115VAC, 1 Phase SPRT-21 - main

Electric Vibrator, 0.6/0.24 A, 115VAC, 1 Phase

  • Mfr # SPRT-21

  • Zoro # G3120765

product price: $368.99
/ea
Free Shipping & Returns

Key Features

Vibrator Type
Compact
Power Source
Electric
Force Rating
20 lb.
Voltage
115VAC
Phase
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SPRT-21
Zoro #
G3120765
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
5"
Overall Width
5"
Overall Height
3-1/2"
Mount Hole Center-to-Center Length
4 in
Mount Hole Size
3/8 in x 7/16 in
Mount Hole Center-to-Center Width
4 in

Details

Item
Electric Vibrator
Vibrator Type
Compact
Power Source
Electric
Force Rating
20 lb.
Voltage
115VAC
Phase
1
Speed
3200 vpm
Bin Weight Capacity
200 lb.
Force
Rheostat Only
End Bell Material
Cast Iron
Bearing Type
Oversized
Duty
Continuous Only at Certain Force Settings, Intermittent Duty at Maximum Force Settings
Standards
ASTM and ASME
Mounting Position
Universal
Max. Temp.
104 Degrees F
Housing Material
Aluminum
Application
For Packing Materials in Drums and Bags and Unjamming Parts in Conveyor Lines, Chutes and Pipes Small Hoppers, Screens, Chutes, Tables, and Filling Machines where only a Small Shake is Necessary but Vibrator Reliability is a Must
dBA
60
Amps
0.6/0.24
Enclosure
Totally Enclosed Non-Ventilated
Mounting Plate
Sold Separately
Includes
Channel Iron (Inches), Mounting Plate, Speed Adjuster
Weight
5 lb
Maximum Vibration Speed
3,200 vpm
Maximum Bin Weight Capacity
200 lb
For Location
Indoor, Outdoor
Duty Cycle
Continuous Only at Certain Force Settings, Intermittent Duty at Maximum Force Settings
Series
SPRT
Horsepower Rating
0.02 hp
Adjustable Speed
Yes
Adjustable Force
Yes
Operating Voltage
115V AC
Sound Level
45 dBA
Mounting Orientation
Any Position
Full Load Current
0.6/0.24 A
Motor Enclosure
Totally Enclosed Nonventilated
Maximum Force
20 lbf
For Environment
Dirt, Dust, Rain, Snow
Mount Plate Required
Yes
Voltage Type
AC
Maximum Operating Temperature
104 Degrees F

Description

Electric Vibrator, Duty Cycle Continuous Only at Certain Force Settings, Intermittent Duty at Maximum Force Settings, Maximum Force 20 lbf, Voltage Type AC, Phase Single, Motor Enclosure Totally Enclosed Nonventilated, Sound Level 45 dBA, Power Source Electric Motor, Operating Voltage 115V AC, Maximum Bin Weight Capacity 200 lb, Full Load Current 0.6/0.24 A, Overall Length 5 in, Overall Width 5 in, Overall Height 3.5 in, Standards ASME, ASTM, Weight 5 lb, Horsepower Rating 0.02 hp
