  11. Electric Vibrator, 0.7/0.32 A, 115VAC, 1 Phase

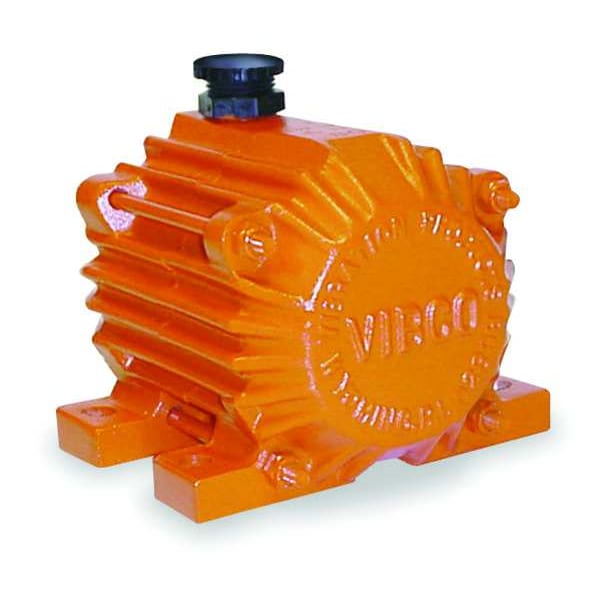

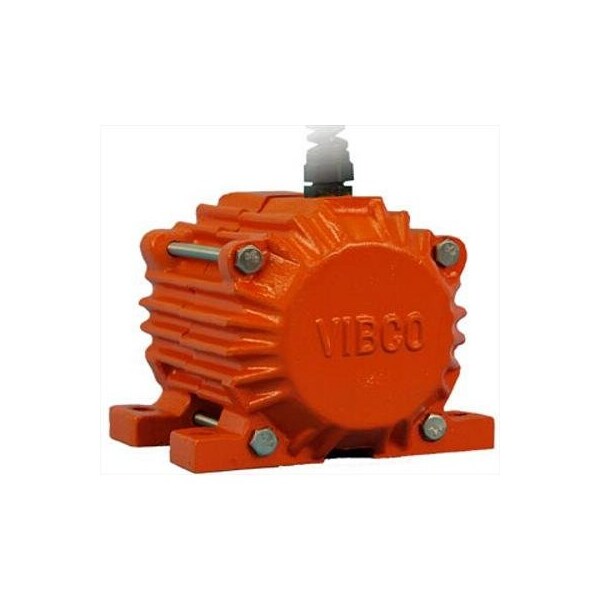

Vibco Electric Vibrator, 0.7/0.32 A, 115VAC, 1 Phase SPWT-21 - main

Electric Vibrator, 0.7/0.32 A, 115VAC, 1 Phase

  • Mfr # SPWT-21

  • Zoro # G3092704

product price: $531.99
/ea
Free Shipping & Returns

Key Features

Vibrator Type
Compact
Force Rating
20 lb.
Power Source
Electric
Voltage
115VAC
Phase
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SPWT-21
Zoro #
G3092704
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
5-3/8"
Overall Width
5-1/2"
Overall Height
6-1/2"
Mount Hole Size
3/8 in x 5/8 in
Mount Hole Center-to-Center Width
4.75 in
Mount Hole Center-to-Center Length
2.75 in

Details

Vibrator Type
Compact
Item
Electric Vibrator
Force Rating
20 lb.
Power Source
Electric
Voltage
115VAC
Phase
1
Speed
3200 vpm
Bin Weight Capacity
200 lb.
Mounting Plate
Sold Separately
Bearing Type
Oversized
Enclosure
Watertight, Totally Enclosed, Non-Ventilated
Application
For Packing Materials in Drums and Bags and Unjamming Parts in Conveyor Lines, Chutes and Pipes Small Hoppers, Screens, Chutes, Tables, and Filling Machines where only a Small Shake is Necessary but Vibrator Reliability is a Must
End Bell Material
Cast Iron
Duty
Continuous Only at Certain Force Settings, Intermittent Duty at Maximum Force Settings
Amps
0.7/0.32
Max. Temp.
104 Degrees F
Housing Material
Aluminum
Mounting Position
Universal
Standards
CE, ASTM and ASME
dBA
60
Includes
Single Internal Eccentrics
Force
Mechanically Adjustable
Maximum Operating Temperature
104 Degrees F
Maximum Bin Weight Capacity
200 lb
Voltage Type
AC
Weight
7 lb
Horsepower Rating
0.02 hp
For Environment
Dirt, Dust, Rain, Snow
Series
SPWT
Adjustable Force
Yes
Full Load Current
0.7/0.32 A
Adjustable Speed
Yes
Maximum Force
20 lbf
Motor Enclosure
Totally Enclosed Nonventilated
Sound Level
45 dBA
Mount Plate Required
Yes
Operating Voltage
115V AC
For Location
Indoor, Outdoor
Duty Cycle
Continuous Only at Certain Force Settings, Intermittent Duty at Maximum Force Settings
Mounting Orientation
Any Position
Maximum Vibration Speed
3,200 vpm

Description

Electric Vibrator, Duty Cycle Continuous Only at Certain Force Settings, Intermittent Duty at Maximum Force Settings, Maximum Force 20 lbf, Voltage Type AC, Phase Single, Motor Enclosure Totally Enclosed Nonventilated, Sound Level 45 dBA, Power Source Electric Motor, Operating Voltage 115V AC, Maximum Bin Weight Capacity 200 lb, Full Load Current 0.7/0.32 A, Overall Length 5.38 in, Overall Width 5.5 in, Overall Height 6.5 in, Standards ASME, ASTM, Weight 7 lb, Horsepower Rating 0.02 hp
