  11. Electric Vibrator, 1.27/0.64 A, 115VAC, 1 Phase

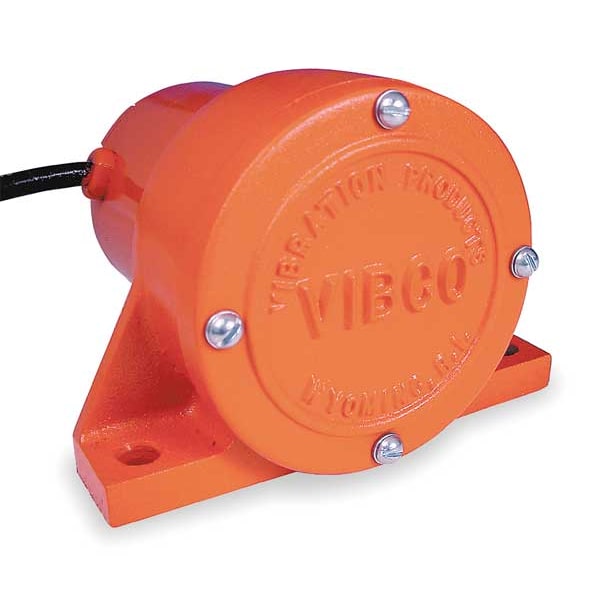

Vibco Electric Vibrator, 1.27/0.64 A, 115VAC, 1 Phase SPR-60HD - main

Electric Vibrator, 1.27/0.64 A, 115VAC, 1 Phase

  • Mfr # SPR-60HD

  • Zoro # G2998922

product price: $459.99
/ea
Free Shipping & Returns

Key Features

Vibrator Type
Heavy Duty
Power Source
Electric
Force Rating
60 lb.
Voltage
115VAC
Phase
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SPR-60HD
Zoro #
G2998922
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
7"
Overall Width
6"
Overall Height
4-1/4"
Mount Hole Center-to-Center Length
5.88 in
Mount Hole Size
3/8 in x 1/2in
Mount Hole Center-to-Center Width
5 in

Details

Item
Electric Vibrator
Vibrator Type
Heavy Duty
Power Source
Electric
Force Rating
60 lb.
Voltage
115VAC
Phase
1
Speed
3200 vpm
Bin Weight Capacity
600 lb.
Housing Material
Aluminum
Amps
1.27/0.64
Standards
ASTM and ASME
Application
For Packing Materials in Drums and Bags and Unjamming Parts in Conveyor Lines, Chutes and Pipes Small Hoppers, Screens, Chutes, Tables, and Filling Machines where only a Small Shake is Necessary but Vibrator Reliability is a Must
Enclosure
Totally Enclosed Fan Cooled
Mounting Position
Universal
Max. Temp.
104 Degrees F
End Bell Material
Cast Iron
Force
Mechanically Adjustable
Bearing Type
Oversized
Duty
Continuous Only at Certain Force Settings, Intermittent Duty at Maximum Force Settings
Mounting Plate
Sold Separately
dBA
60
Includes
Channel Iron (Inches), Mounting Plate, Speed Adjuster
Series
SPR
Maximum Vibration Speed
3,200 vpm
Voltage Type
AC
Mounting Orientation
Any Position
Adjustable Speed
Yes
Duty Cycle
Continuous Only at Certain Force Settings, Intermittent Duty at Maximum Force Settings
Motor Enclosure
Totally Enclosed Fan-Cooled
For Location
Indoor, Outdoor
Operating Voltage
115V AC
Horsepower Rating
0.05 hp
Maximum Operating Temperature
104 Degrees F
Full Load Current
1.27/0.64 A
For Environment
Dirt, Dust, Rain, Snow
Maximum Bin Weight Capacity
600 lb
Sound Level
60 dBA
Weight
7 lb
Maximum Force
60 lbf
Mount Plate Required
Yes
Adjustable Force
Yes

Description

Electric Vibrator, Duty Cycle Continuous Only at Certain Force Settings, Intermittent Duty at Maximum Force Settings, Maximum Force 60 lbf, Voltage Type AC, Phase Single, Motor Enclosure Totally Enclosed Fan-Cooled, Sound Level 60 dBA, Power Source Electric Motor, Operating Voltage 115V AC, Maximum Bin Weight Capacity 600 lb, Full Load Current 1.27/0.64 A, Overall Length 7 in, Overall Width 6 in, Overall Height 4.25 in, Standards ASME, ASTM, Weight 7 lb, Horsepower Rating 0.05 hp
