Electric Vibrator, 1.3 A, 115VAC, 1 Phase

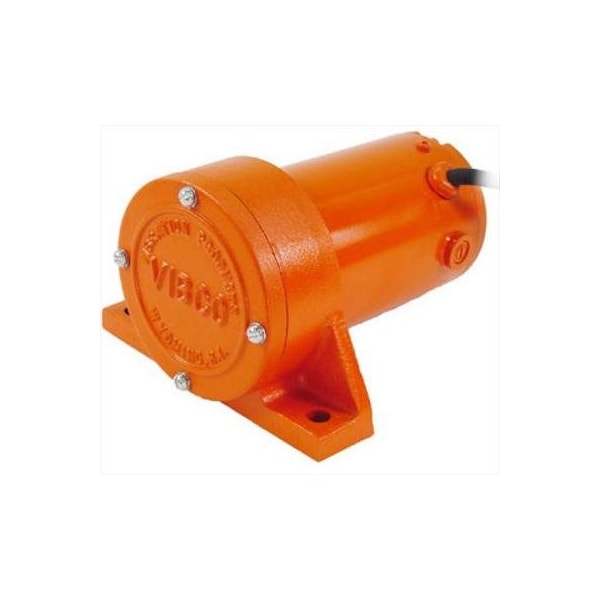

Vibco Electric Vibrator,  1.3 A,  115VAC,  1 Phase SCR-100
Hover or click to zoom Tap to zoom
$651.20
  • Vibrator Type: Adjustable
  • Item: Electric Vibrator
  • Force Rating: 100 lb
See full product details
This item ships free.

Total: $651.20

Vibco #SCR-100 Specifications

  • Vibrator Type: Adjustable
  • Item: Electric Vibrator
  • Force Rating: 100 lb
  • Power Source: Electric
  • Voltage: 115VAC
  • Phase: 1
  • Overall Length: 6-3/4"
  • Overall Width: 6"
  • Speed: 950 to 4000 vpm
  • Overall Height: 4-1/4"
  • Bin Weight Capacity: 1000 lb
  • Max. Cubic Yards per Hour: -
  • Includes: 115 VAC to 90 VDC Control
  • Duty: Continuous
  • Max. Temp.: 200 Degrees F
  • Standards: ASTM and ASME
  • Enclosure: Totally Enclosed
  • Application: Vibrating Tables for Packing Materials in Drums and Bags and Unjamming Parts in Conveyor Lines, Chutes and Pipes
  • Amps: 1.3
  • Bearing Type: Oversized
  • Mounting Plate: Sold Separately
  • Mounting Position: Universal
  • dBA: 68 @ 3 ft.
  • HP: -
  • Force: Adjustable
  • Country of Origin (subject to change): United States

Description

Electric Vibrator, Adjustable, Electric Power Source, Voltage 115V AC, 1 Phase, Amps 1.3, - HP, Force Rating 100 lb, Bin Weight Capacity 1,000 lb, Speed 950 to 4000 vpm, 68 @ 3 ft dBA, Max. Temp. 200 Degrees F, Bearing Type Oversized, Overall Height 4 1/4 in, Overall Length 6 3/4 in, Overall Width 6 in

Reviews of Vibco #SCR-100
