  11. Electric Vibrator, 16/8 A, 12VDC, 1 Phase

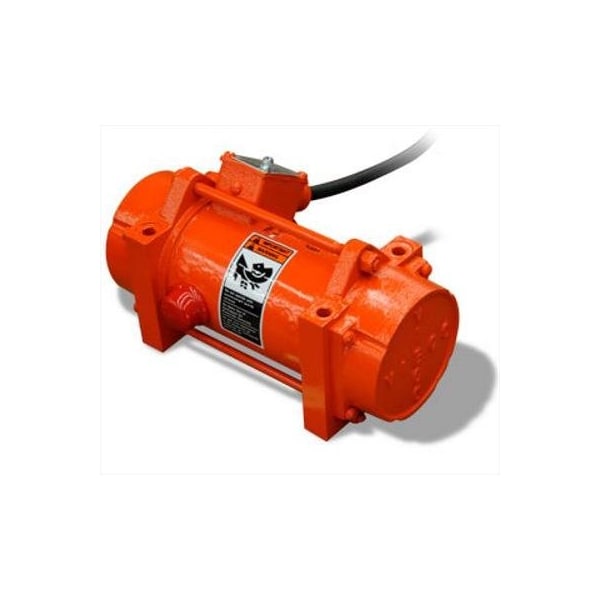

Vibco Electric Vibrator, 16/8 A, 12VDC, 1 Phase DC-300 - main

Electric Vibrator, 16/8 A, 12VDC, 1 Phase

  • Mfr # DC-300

  • Zoro # G0948561

product price: $1,016.99
/ea
Free Shipping & Returns

Key Features

Vibrator Type
Battery Operated
Power Source
Electric - 12VDC Battery
Force Rating
350 lb.
Voltage
12VDC
Phase
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DC-300
Zoro #
G0948561
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
9"
Overall Width
4-1/16"
Overall Height
5-1/16"
Mount Hole Center-to-Center Width
3 in
Mount Hole Center-to-Center Length
5.75 in

Details

Item
Electric Vibrator
Vibrator Type
Battery Operated
Power Source
Electric - 12VDC Battery
Force Rating
350 lb.
Voltage
12VDC
Phase
1
Speed
4000 vpm
Bin Weight Capacity
3000 lb.
Bearing Type
Prelubricated
Enclosure
Totally Enclosed
Max. Temp.
104 Degrees F
dBA
74
Application
Speeds Emptying of Trucks, Highway Equipment, Fertilizer Trailers, Ready Mix Trucks and Spreaders
End Bell Material
Cast Iron
Duty
Continuous
Mounting Position
Universal
Force
Mechanically Adjustable
Mounting Plate
Sold Separately
Amps
16/8
Includes
Channel Iron (Inches), Mounting Plate, Wiring Kit
Sound Level
74 dBA
Weight
15.5 lb
Maximum Operating Temperature
104 Degrees F
Motor Enclosure
Totally Enclosed Nonventilated
Maximum Vibration Speed
4,000 vpm
Maximum Force
350 lbf
Mounting Orientation
Any Position
Adjustable Speed
Yes
Duty Cycle
Continuous
Adjustable Force
Yes
Mount Plate Required
Yes
For Location
Indoor, Outdoor
Operating Voltage
12V DC
Voltage Type
DC
Series
DC
For Environment
Dirt, Dust, Rain, Snow
Full Load Current
16/8 A
Maximum Bin Weight Capacity
3,000 lb

Description

Electric Vibrator, Duty Cycle Continuous, Maximum Force 350 lbf, Voltage Type DC, Phase Single, Motor Enclosure Totally Enclosed Nonventilated, Sound Level 74 dBA, Power Source Battery, Operating Voltage 12V DC, Maximum Bin Weight Capacity 3,000 lb, Full Load Current 16/8 A, Overall Length 9 in, Overall Width 4.13 in, Overall Height 5 in, Weight 15.5 lb, Adjustable Force Yes, Adjustable Speed Yes
