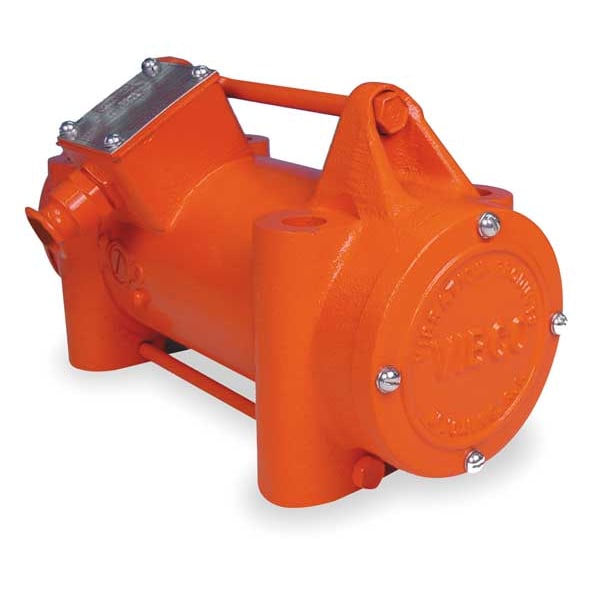

Electric Vibrator, 4.50 A, 115VAC, 1 Phase

  • Mfr # US-900

  • Zoro # G8074376


product price: $1,450.99
/ea
Free Shipping & Returns

Key Features

Vibrator Type
High Frequency
Force Rating
900 lb
Power Source
Electric
Voltage
115VAC
Phase
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
US-900
Zoro #
G8074376
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
11-1/8"
Overall Width
5-1/2"
Overall Height
6-1/4"
Mount Hole Size
1/2 in x 4 5/16 in
Mount Hole Center-to-Center Length
6.63 in
Mount Hole Center-to-Center Width
3.5 in

Details

Item
Electric Vibrator
Vibrator Type
High Frequency
Force Rating
900 lb
Power Source
Electric
Voltage
115VAC
Phase
1
Speed
10,000 vpm
Bin Weight Capacity
9000 lb
Mounting Position
Universal
Mounting Plate
Sold Separately
Force
Mechanically Adjustable
Application
For Trucking and Mobile
Max. Temp.
200 Degrees F
Amps
4.50
Enclosure
Totally Enclosed
dBA
85
HP
1/4
Duty
Intermittent
Bearing Type
Prelubricated
Includes
Channel Iron (Inches), Mounting Plate, Safety Cable, Speed Adjuster
Full Load Current
4.5 A
Maximum Operating Temperature
200 Degrees F
Voltage Type
AC
Maximum Force
900 lbf
Series
US
Maximum Bin Weight Capacity
9,000 lb
Motor Enclosure
Totally Enclosed Nonventilated
Adjustable Speed
Yes
Weight
30 lb
For Environment
Dirt, Dust, Rain, Snow
Sound Level
85 dBA
Adjustable Force
Yes
Duty Cycle
Intermittent
Operating Voltage
115V AC
Mounting Orientation
Any Position
Mount Plate Required
Yes
For Location
Indoor, Outdoor
Maximum Vibration Speed
10,000 vpm
Horsepower Rating
0.25 hp

Description

Electric Vibrator, Duty Cycle Intermittent, Maximum Force 900 lbf, Voltage Type AC, Phase Single, Motor Enclosure Totally Enclosed Nonventilated, Sound Level 85 dBA, Power Source Electric Motor, Operating Voltage 115V AC, Maximum Bin Weight Capacity 9,000 lb, Full Load Current 4.5 A, Overall Length 11.13 in, Overall Width 5.5 in, Overall Height 6.25 in, Weight 30 lb, Horsepower Rating 0.25 hp, Adjustable Force Yes, Adjustable Speed Yes, Application For Trucking, Mobile
