  11. Electric Vibrator, 6.0/3.0 A, 115/230VAC, 1 Phase

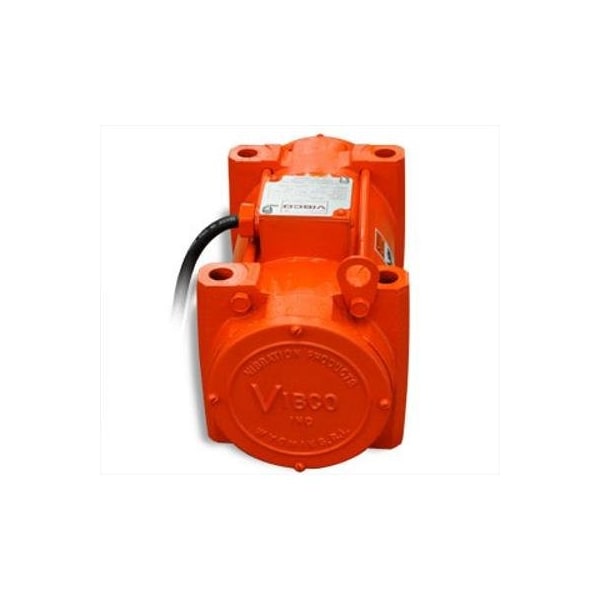

Vibco Electric Vibrator, 6.0/3.0 A, 115/230VAC, 1 Phase 4P-700-1 - main

Electric Vibrator, 6.0/3.0 A, 115/230VAC, 1 Phase

  • Mfr # 4P-700-1

  • Zoro # G0892954

product price: $1,697.99
/ea
Free Shipping & Returns

Key Features

Vibrator Type
Heavy Duty
Power Source
Electric
Force Rating
100 to 500 lb
Voltage
115/230VAC
Phase
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4P-700-1
Zoro #
G0892954
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
13-1/8"
Overall Width
6-1/2"
Overall Height
7-1/2"
Mount Hole Center-to-Center Length
8.38 in
Mount Hole Size
5/8 in x 6 in
Mount Hole Center-to-Center Width
5 in

Details

Vibrator Type
Heavy Duty
Item
Electric Vibrator
Power Source
Electric
Force Rating
100 to 500 lb
Voltage
115/230VAC
Phase
1
Speed
1800 vpm
Bin Weight Capacity
7000 lb
Bearing Type
Prelubricated
Force
Mechanically Adjustable
Standards
Meets ASTM and ASME, CE Certified
dBA
63
Max. Temp.
200 Degrees F
Enclosure
Totally Enclosed Non-Ventilated
Mounting Position
Universal
Application
For Packing Materials in Drums and Bags and Unjamming Parts in Conveyor Lines, Chutes and Pipes, Bins Containing Lumpy or Sticky Materials for Packing Light, Fluffy Materials and as a Typical Screen Vibrator, Trucking and Mobile
Mounting Plate
Sold Separately
Amps
6.0/3.0
Duty
Continuous Only at Certain Force Settings, Intermittent Duty at Maximum Force Settings
HP
1/2
Includes
Mounting Plate for 2P-450-1, 4P-1000, 4P-700, 6P-300, 6P-500, Channel Iron (Inches), Safety Cable
Mount Plate Required
Yes
Minimum Force
50 lbf
For Location
Indoor, Outdoor
Weight
63 lb
Mounting Orientation
Any Position
Voltage Type
AC
Maximum Force
200 lbf
Full Load Current
6 A
Operating Voltage
115V AC
Resistance Properties
Corrosion Resistant
Duty Cycle
Continuous Only at Certain Force Settings, Intermittent Duty at Maximum Force Settings
Adjustable Speed
Yes
Maximum Vibration Speed
1,800 vpm
Sound Level
60 dBA
Motor Enclosure
Totally Enclosed Nonventilated
Maximum Operating Temperature
200 Degrees F
Mount Type
Bolt-On
Horsepower Rating
0.25 hp
Maximum Bin Weight Capacity
7,000 lb
Adjustable Force
Yes
Series
4P
For Environment
Dirt, Dust, Rain, Snow

Description

Electric Vibrator, Duty Cycle Continuous Only at Certain Force Settings, Intermittent Duty at Maximum Force Settings, Maximum Force 200 lbf, Voltage Type AC, Phase Single, Motor Enclosure Totally Enclosed Nonventilated, Sound Level 60 dBA, Power Source Electric Motor, Operating Voltage 115V AC, Maximum Bin Weight Capacity 7,000 lb, Full Load Current 6 A, Overall Length 13.13 in, Overall Width 6.5 in, Overall Height 7.5 in, Standards ASME, ASTM, CE Certified, Weight 63 lb
