  11. Electric Vibrator, 6.2/3.1 A, 115/230VAC, 1 Phase

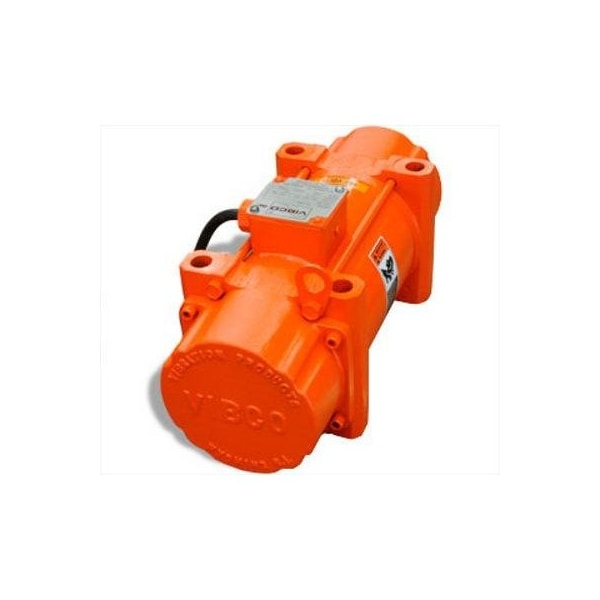

Vibco Electric Vibrator, 6.2/3.1 A, 115/230VAC, 1 Phase 4P-1000-1 - main

Electric Vibrator, 6.2/3.1 A, 115/230VAC, 1 Phase

  • Mfr # 4P-1000-1

  • Zoro # G0693944

product price: $1,705.99
/ea
Free Shipping & Returns

Key Features

Vibrator Type
Heavy Duty
Force Rating
250 to 800 lb
Power Source
Electric
Voltage
115/230VAC
Phase
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4P-1000-1
Zoro #
G0693944
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
15-1/2"
Overall Width
6-1/2"
Overall Height
7-5/8"
Mount Hole Size
5/8 in x 6 in
Mount Hole Center-to-Center Length
8.63 in
Mount Hole Center-to-Center Width
5 in

Details

Item
Electric Vibrator
Vibrator Type
Heavy Duty
Force Rating
250 to 800 lb
Power Source
Electric
Voltage
115/230VAC
Phase
1
Speed
1800 vpm
Bin Weight Capacity
10,000 lb
Mounting Plate
Sold Separately
Max. Temp.
200 Degrees F
Enclosure
Totally Enclosed
Force
Mechanically Adjustable
HP
1/2
Bearing Type
Prelubricated
dBA
63
Application
For Packing Materials in Drums and Bags and Unjamming Parts in Conveyor Lines, Chutes and Pipes, Bins Containing Lumpy or Sticky Materials for Packing Light, Fluffy Materials and as a Typical Screen Vibrator, Trucking and Mobile
Standards
ASTM and ASME
Duty
Continuous Only at Certain Force Settings, Intermittent Duty at Maximum Force Settings
Amps
6.2/3.1
Mounting Position
Universal
Includes
4P-1000, 4P-700, 6P-300, 6P-500, Channel Iron (Inches), Mounting Plate for 2P-450-1, Safety Cable
Horsepower Rating
0.5 hp
Maximum Operating Temperature
200 Degrees F
Motor Enclosure
Totally Enclosed Nonventilated
Series
4P
Full Load Current
6.2 A
Mount Plate Required
Yes
For Environment
Dirt, Dust, Rain, Snow
Weight
69 lb
Resistance Properties
Corrosion Resistant
Adjustable Force
Yes
For Location
Indoor, Outdoor
Maximum Vibration Speed
3,600 vpm
Maximum Force
800 lbf
Operating Voltage
115V AC
Maximum Bin Weight Capacity
10,000 lb
Voltage Type
AC
Duty Cycle
Continuous Only at Certain Force Settings, Intermittent Duty at Maximum Force Settings
Adjustable Speed
Yes
Sound Level
63 dBA
Minimum Force
250 lbf
Mounting Orientation
Any Position

Description

Electric Vibrator, Duty Cycle Continuous Only at Certain Force Settings, Intermittent Duty at Maximum Force Settings, Maximum Force 800 lbf, Voltage Type AC, Phase Single, Motor Enclosure Totally Enclosed Nonventilated, Sound Level 63 dBA, Power Source Electric Motor, Operating Voltage 115V AC, Maximum Bin Weight Capacity 10,000 lb, Full Load Current 6.2 A, Overall Length 15.5 in, Overall Width 6.5 in, Overall Height 7.63 in, Standards ASME, ASTM, Weight 69 lb, Horsepower Rating 0.5 hp
