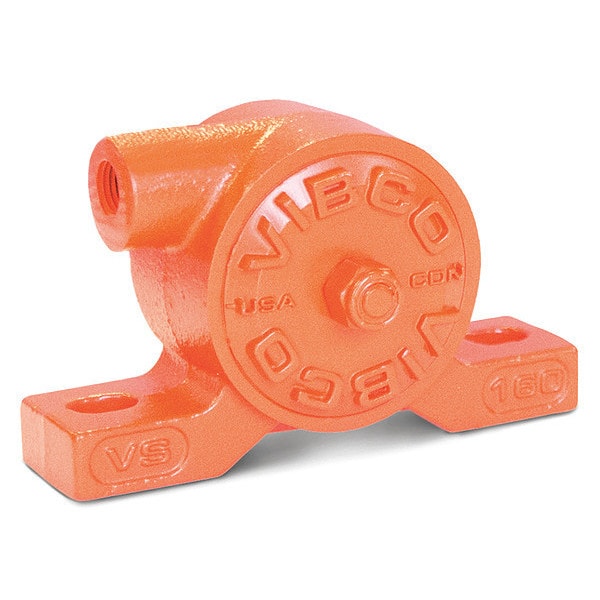

Pneumatic Vibrator, 160lb, 10, 000vpm, 80psi
$137.95 /ea
This item ships free. Details.Standard ground shipping.
Details:
Max. Pressure: 80 psiInlet Port: 1/4" NPTSpeed @ 80 psi: 12,000 VPMPneumatic Vibrator, Turbine, Force Rating 160 lb., Bin Weight Capacity 1600 lb., CFM @ 60 psi 2.3, Max. Temp. 350 Degrees F, Inlet Port 1/4 In. NPT, Sold Separately, Cast Iron Housing Material, Overall Length 5-1/8 In., Overall Width 2-7/8 In., Overall Height 3 In.
Specifications
| Zoro #: G2386185 Mfr #: VS-160 | |
| Max. Pressure: 80 psi | Inlet Port: 1/4" NPT |
| Speed @ 80 psi: 12,000 VPM | Mounting Plate: Sold Separately |
| Mounting: Foot | Overall Width: 2-7/8" |
| Bin Weight Capacity: 1600 lb. | Vibrator Type: Turbine |
| Application: Automotive, Chemical, Plastics, Bio-tech, Plating and Food Industries | Max. Temp.: 350 Degrees F |
| Force Rating: 160 lb. | CFM @ 60 psi: 2.3 |
| dB @ 80 psi: 70 | Duty: Continuous |
| Item: Pneumatic Vibrator | Muffler: Included |
| CFM @ 80 PSI: 2.5 | Housing Material: Cast iron |
| Speed @ 60 psi: 10,000 VPM | Overall Length: 5-1/8" |
| Overall Height: 3" | Country of Origin (subject to change): United States |
Description
Pneumatic Vibrator, Turbine, Force Rating 160 lb., Bin Weight Capacity 1600 lb., CFM @ 60 psi 2.3, Max. Temp. 350 Degrees F, Inlet Port 1/4 In. NPT, Sold Separately, Cast Iron Housing Material, Overall Length 5-1/8 In., Overall Width 2-7/8 In., Overall Height 3 In.
