Vibco

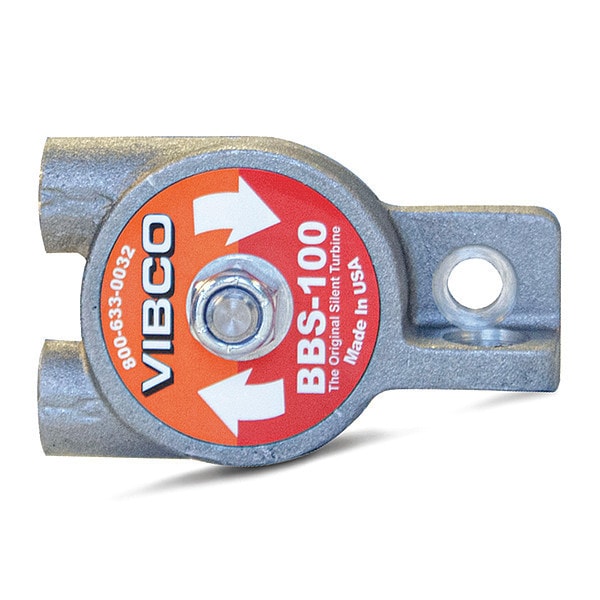

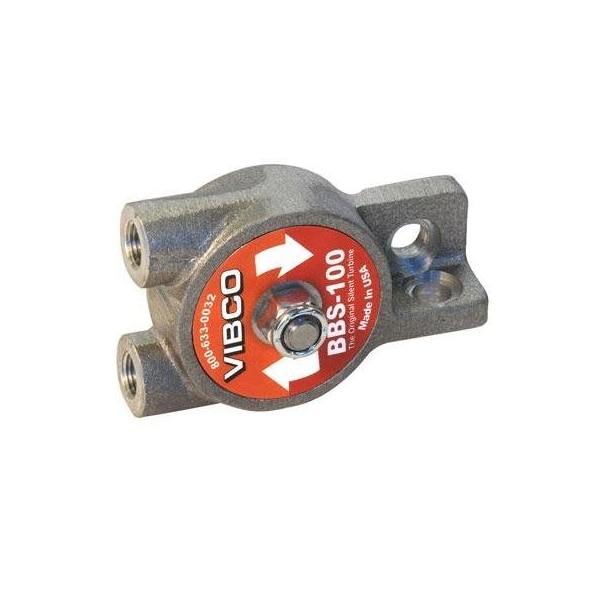

Pneumatic Vibrator, 20 lb, 12,000vpm, 60psi

product price: $160.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Vibrator Type Turbine
  • Force Rating 20 lb
  • Speed @ 60 psi 10,000 VPM
  • Overall Length 3-1/4"
  • Overall Width 1-5/8"
See all product information

Product Information

  • Brand Vibco
  • MFR # BBS-100
  • Zoro # G2547745
  • Country of Origin United States
  • Category Vibrators

Dimensions

Overall Length 3-1/4"
Overall Width 1-5/8"
Overall Height 2"
Outlet Connection Size 1/8 in
Mount Hole Size 8
Inlet Connection Size 1/8 in

Details

Item Pneumatic Vibrator
Vibrator Type Turbine
Force Rating 20 lb
Speed @ 60 psi 10,000 VPM
dB @ 60 psi 66
Bin Weight Capacity 200 lb
Inlet Port 1/8" NPT
Outlet Port 1/8" NPT
CFM @ 60 psi 1.1
Muffler 1A325
Max. Temp. 350 Degrees F
Duty Continuous
Housing Material Aluminum
Application Automotive, Chemical, Plastics, Bio-tech, Plating and Food Industries, Parts Feeders and Foundry Matchplates
Mounting Plate Sold Separately
Max. Pressure 60 psi
Mounting Single-bolt
Standards CE Certified, ATEX Certified
Mount Plate Required Yes
Air Flow Rate 3.5 cfm @ 60 psi
Mount Type Single-bolt
Maximum Vibration Speed 12,000 vpm
Vibration Speeds @ PSI 12,000 vpm @ 60 psi
Outlet Connection Type NPT
Duty Cycle Continuous
Maximum Operating Temperature 350 Degrees F
Inlet Connection Type NPT
Pneumatic Vibrator Type Turbine
Maximum Force 20 lbf
Weight 1 lb
Force @ PSI 20 lbf @ 60 psi
Maximum Bin Weight Capacity 200 lb
Series BBS
Vibration Speed @ 60 psi 12,000 vpm
Maximum Inlet Pressure 60 psi
Force @ 60 psi 20 lbf
Sound Level 66 dBA
Mount Plate Included No

Description

Pneumatic Vibrator, Housing Material Aluminum, Outlet Connection Size 1/8 in, Outlet Connection Type NPT, Air Flow Rate 3.5 cfm @ 60 psi, Maximum Force 20 lbf, Inlet Connection Size 1/8 in, Inlet Connection Type NPT, Maximum Vibration Speed 12,000 vpm, Maximum Bin Weight Capacity 200 lb, Overall Height 2.01 in, Overall Length 3.27 in, Overall Width 1.61 in, Sound Level 66 dBA, Duty Cycle Continuous, Pneumatic Vibrator Type Turbine, Force @ PSI 20 lbf @ 60 psi, Mount Type Single-bolt
