  11. Pneumatic Vibrator, 20 lb, 12,000vpm, 60psi
Shop All Vibrators
Vibco

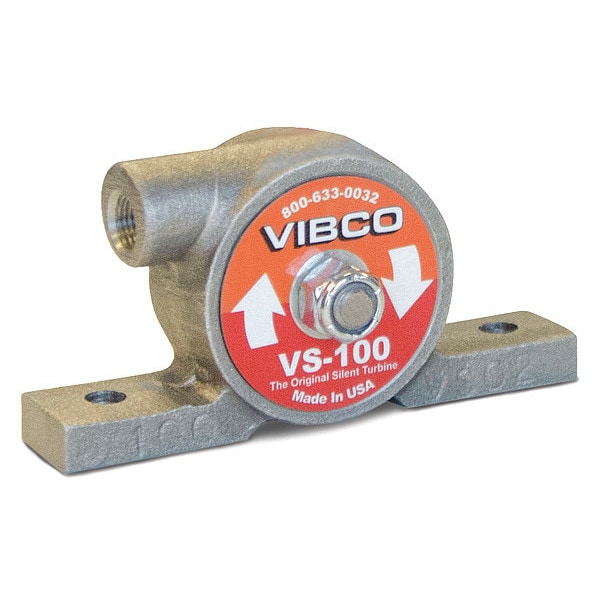

Pneumatic Vibrator, 20 lb, 12,000vpm, 60psi

product price: $185.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Vibrator Type Turbine
  • Force Rating 20 lb
  • Speed @ 60 psi 12,000 VPM
  • Overall Length 3-7/8"
  • Overall Width 1-7/8"
See all product information

Product Information

  • Brand Vibco
  • MFR # VS-100
  • Zoro # G1776485
  • Country of Origin United States
  • Category Vibrators

Dimensions

Overall Length 3-7/8"
Overall Width 1-7/8"
Overall Height 2"
Inlet Connection Size 1/8 in
Mount Hole Center-to-Center Length 76 mm
Mount Hole Size 6

Details

Vibrator Type Turbine
Item Pneumatic Vibrator
Force Rating 20 lb
Speed @ 60 psi 12,000 VPM
dB @ 60 psi 66
Bin Weight Capacity 200 lb
Inlet Port 1/8" NPT
Housing Material Cast iron
Max. Pressure 60 psi
Standards CE Certified, ATEX Certified
Mounting Foot
CFM @ 60 psi 1.1
Mounting Plate Sold Separately
Application Automotive, Chemical, Plastics, Bio-tech, Plating and Food Industries
Max. Temp. 350 Degrees F
Muffler Included
Duty Continuous
Pneumatic Vibrator Type Turbine
Maximum Force 20 lbf
Weight 0.5 lb
Force @ 80 psi 20 lbf
Vibration Speed @ 60 psi 12,000 vpm
Air Flow Rate 4 cfm @ 60 psi
Sound Level 66 dBA
Maximum Vibration Speed 12,000 vpm
Series VS
Mount Plate Required Yes
Vibration Speed @ 80 psi 10,500 vpm
Inlet Connection Type NPT
Force @ PSI 20 lbf @ 80 psi
Adjustable Speed Yes
Vibration Speeds @ PSI 10,500 vpm @ 80 psi, 12,000 vpm @ 60 psi
Mount Type Foot
Duty Cycle Continuous
Mount Plate Included No
Maximum Bin Weight Capacity 200 lb
Maximum Operating Temperature 350 Degrees F
Maximum Inlet Pressure 60 psi

Description

Pneumatic Vibrator, Housing Material Cast Iron, Air Flow Rate 4 cfm @ 60 psi, Maximum Force 20 lbf, Inlet Connection Size 1/8 in, Inlet Connection Type NPT, Maximum Vibration Speed 12,000 vpm, Maximum Bin Weight Capacity 200 lb, Overall Height 2.01 in, Overall Length 3.86 in, Overall Width 1.89 in, Sound Level 66 dBA, Duty Cycle Continuous, Pneumatic Vibrator Type Turbine, Force @ PSI 20 lbf @ 80 psi, Mount Type Foot, Adjustable Speed Yes, Maximum Operating Temperature 350 Degrees F
