  11. Pneumatic Vibrator, 242 lb, 9000 vpm, 80psi
Shop All Vibrators
Vibco

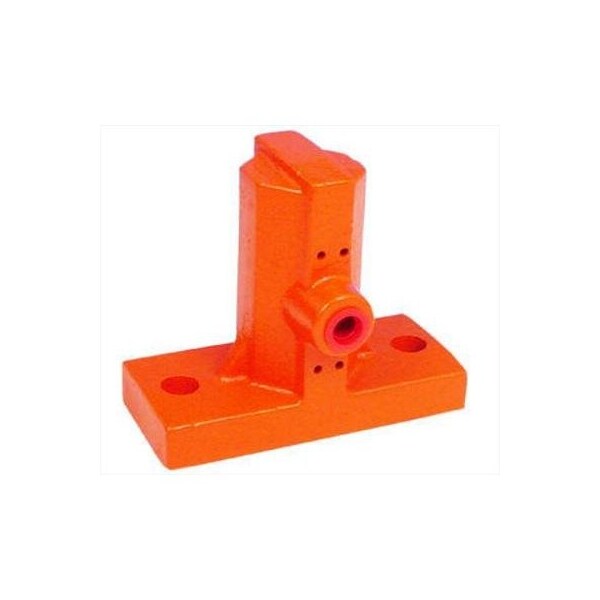

Pneumatic Vibrator, 242 lb, 9000 vpm, 80psi

product price: $187.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Vibrator Type Piston
  • Force Rating 242 lb.
  • CFM @ 80 PSI 5
  • Speed @ 60 psi 9000 VPM
  • Overall Length 4-1/2"
See all product information

Product Information

  • Brand Vibco
  • MFR # 55-1
  • Zoro # G0777673
  • Country of Origin United States
  • Category Vibrators

Dimensions

Overall Length 4-1/2"
Overall Width 2"
Overall Height 3-7/8"
Inlet Connection Size 1/4 in
Outlet Connection Size 9/16 in

Details

Item Pneumatic Vibrator
Vibrator Type Piston
Force Rating 242 lb.
CFM @ 80 PSI 5
Speed @ 60 psi 9000 VPM
Speed @ 80 psi 11,000 VPM
Bin Weight Capacity 400 lb.
dB @ 80 psi 91
Inlet Port 1/4" NPT
Outlet Port 9/16" NPT
Application Mining, Chemical Plants, Plastics, Manufacturing, Foundries and Paper Plants
Mounting Plate Sold Separately
Mounting Foot
Standards CE certified
Housing Material Steel
Max. Pressure 80 psi
Muffler 1A326
Duty Continuous
CFM @ 60 psi 4
Vibration Speeds @ PSI 11,000 vpm @ 80 psi, 6,500 vpm @ 40 psi, 9,000 vpm @ 60 psi
Weight 3.5 lb
Outlet Connection Type NPT
Sound Level 91 dBA
Pneumatic Vibrator Type Piston
Maximum Inlet Pressure 80 psi
Duty Cycle Continuous
Compatible Muffler Grainger Part Number 1A326
Force @ PSI 242 lbf @ 80 psi
Series 55
Maximum Vibration Speed 11,000 vpm
Mount Plate Included No
Minimum Bin Weight Capacity 200 lb
Maximum Bin Weight Capacity 400 lb
Mount Type Bolt-On
Force @ 80 psi 242 lbf
Inlet Connection Type NPT
Mount Plate Required Yes
Vibration Speed @ 60 psi 9,000 vpm
Vibration Speed @ 80 psi 11,000 vpm
Air Flow Rate 3.5 cfm @ 40 psi, 4 cfm @ 60 psi, 5 cfm @ 80psi

Description

Piston Vibrator, Housing Material Steel, Outlet Connection Size 9/16 in, Outlet Connection Type NPT, Air Flow Rate 3.5 cfm @ 40 psi, 4 cfm @ 60 psi, 5 cfm @ 80psi, Inlet Connection Size 1/4 in, Inlet Connection Type NPT, Maximum Vibration Speed 11,000 vpm, Maximum Bin Weight Capacity 400 lb, Overall Height 3.86 in, Overall Length 4.53 in, Overall Width 2.01 in, Sound Level 91 dBA, Duty Cycle Continuous, Pneumatic Vibrator Type Piston, Force @ PSI 242 lbf @ 80 psi, Mount Type Bolt-On
