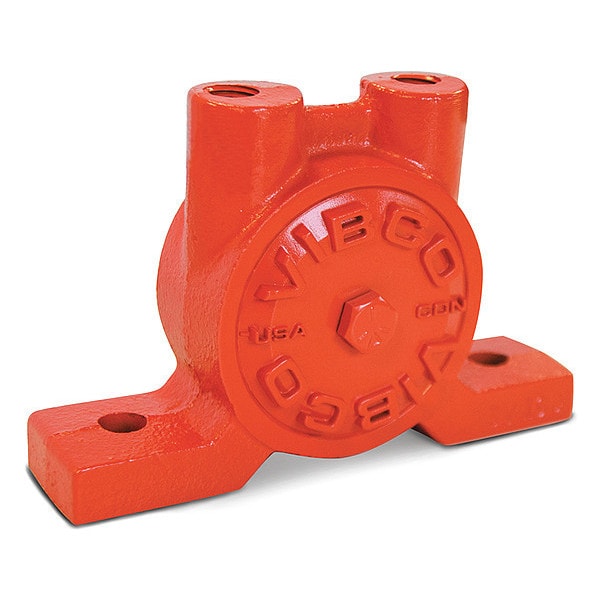

Pneumatic Vibrator, 260lb, 14, 000vpm, 80psi

VIBCO| Zoro #: G1904427| Mfr #: BV-190

$232.16 /ea

qty
This item ships free. Details.Standard ground shipping.
Details:
Max. Pressure: 80 psiInlet Port: 1/4" NPTOutlet Port: 1/4" NPT
Save 15%. Sign up for Z-mail.

Specifications

Zoro #: G1904427 Mfr #: BV-190
Max. Pressure: 80 psiInlet Port: 1/4" NPT
Outlet Port: 1/4" NPTOverall Width: 2-1/4"
Vibrator Type: BallMax. Temp.: 350 Degrees F
Application: Automotive, Chemical, Plastics, Bio-tech, Plating and Food IndustriesForce Rating: 260 lb.
Overall Height: 3-9/16"Speed @ 80 psi: 16,000 VPM
Mounting Plate: Sold SeparatelydB @ 60 psi: 77
Mounting: UniversalDuty: Continuous
Bin Weight Capacity: 2600 lb.CFM @ 80 PSI: 11
CFM @ 60 psi: 10dB @ 80 psi: 77
Item: Pneumatic VibratorMuffler: 1A326
Housing Material: Cast ironSpeed @ 60 psi: 14,000 VPM
Overall Length: 5-1/2"Ball Material: Hardened Steel
Country of Origin (subject to change): United States

Description

Pneumatic Vibrator, Ball, Force Rating 260 lb., Bin Weight Capacity 2600 lb., CFM @ 60 psi 10, dB @ 60 psi 77, Max. Temp. 350 Degrees F, Inlet Port 1/4 In. NPT, Outlet Port 1/4 In. NPT, Sold Separately, Cast Iron Housing Material, Overall Length 5-1/2 In., Overall Width 2-1/4 In., Overall Height 3-9/16 In.
