  11. Pneumatic Vibrator, 325 lb, 5500 vpm, 80psi
Shop All Vibrators
Vibco

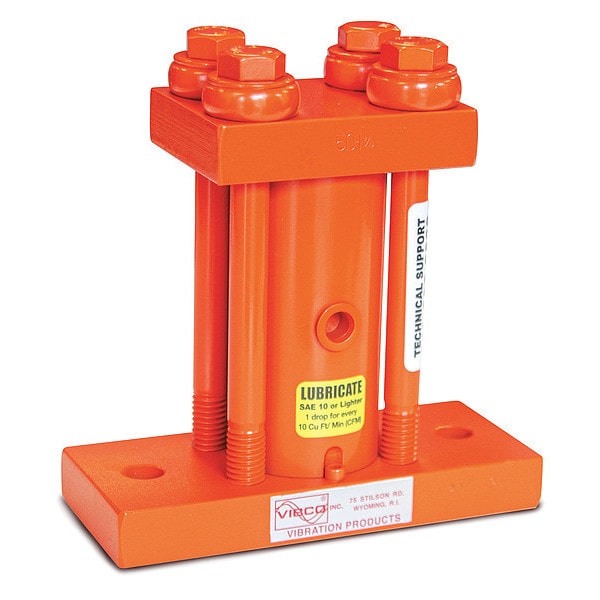

Pneumatic Vibrator, 325 lb, 5500 vpm, 80psi

product price: $358.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Vibrator Type Piston
  • Force Rating 325 lb.
  • CFM @ 80 PSI 9
  • Speed @ 60 psi 5500 VPM
  • Overall Length 6"
See all product information

Product Information

  • Brand Vibco
  • MFR # 50-1-1/4
  • Zoro # G1956692
  • Country of Origin United States
  • Category Vibrators

Dimensions

Overall Length 6"
Overall Width 2-1/2"
Overall Height 6-1/2"
Outlet Connection Size 1/4 in
Inlet Connection Size 1/4 in

Details

Item Pneumatic Vibrator
Vibrator Type Piston
Force Rating 325 lb.
CFM @ 80 PSI 9
Speed @ 60 psi 5500 VPM
Speed @ 80 psi 7000 VPM
dB @ 80 psi 92
Bin Weight Capacity 1000 lb.
Inlet Port 1/4" NPT
Outlet Port 1/4" NPT
Duty Continuous
Muffler 1A326
Application Mining, Chemical Plants, Plastics, Manufacturing, Foundries and Paper Plants
Standards CE certified
Housing Material Steel
Max. Pressure 80 psi
Mounting Foot
CFM @ 60 psi 7
Mounting Plate Sold Separately
Vibration Speeds @ PSI 4,000 vpm @ 40 psi, 5,500 vpm @ 60 psi, 7,000 vpm @ 80 psi
Vibration Speed @ 60 psi 5,500 vpm
Inlet Connection Type NPT
Force @ 80 psi 325 lbf
Maximum Vibration Speed 7,000 vpm
Mount Type Bolt-On
Air Flow Rate 5 cfm @ 40 psi, 7 cfm @ 60 psi, 9 cfm @ 80 psi
Force @ PSI 325 lbf @ 80 psi
Duty Cycle Continuous
Vibration Speed @ 80 psi 7,000 vpm
Minimum Bin Weight Capacity 400 lb
Mount Plate Included No
Series 50
Pneumatic Vibrator Type Piston
Weight 10 lb
Maximum Inlet Pressure 80 psi
Maximum Bin Weight Capacity 1,000 lb
Mount Plate Required Yes
Outlet Connection Type NPT
Sound Level 92 dBA

Description

Piston Vibrator, Housing Material Steel, Outlet Connection Size 1/4 in, Outlet Connection Type NPT, Air Flow Rate 5 cfm @ 40 psi, 7 cfm @ 60 psi, 9 cfm @ 80 psi, Inlet Connection Size 1/4 in, Inlet Connection Type NPT, Maximum Vibration Speed 7,000 vpm, Maximum Bin Weight Capacity 1,000 lb, Overall Height 6.5 in, Overall Length 6.02 in, Overall Width 2.52 in, Sound Level 92 dBA, Duty Cycle Continuous, Pneumatic Vibrator Type Piston, Force @ PSI 325 lbf @ 80 psi, Mount Type Bolt-On
