  9. Flowmeter Regulator, Argon, Carbon Dioxide, Single Stage, 0.960"-14(CGA 580) Inlet

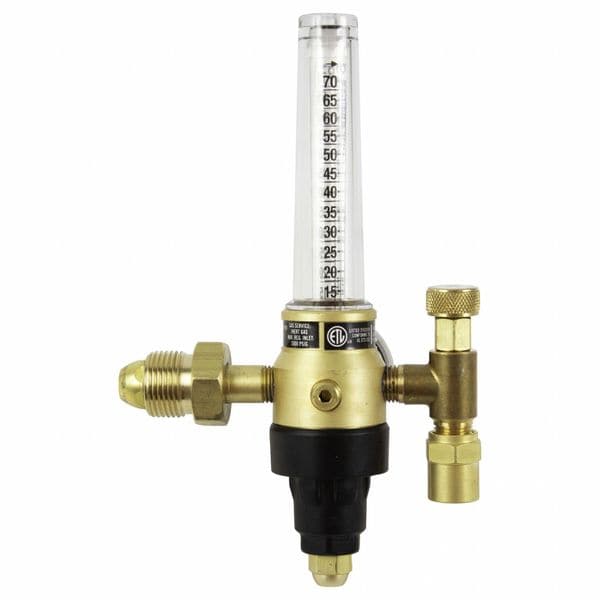

Victor Flowmeter Regulator, Argon, Carbon Dioxide, Single Stage, 0.960"-14(CGA 580) Inlet 0781G3656 - main

Flowmeter Regulator, Argon, Carbon Dioxide, Single Stage, 0.960"-14(CGA 580) Inlet

  • Mfr # 0781G3656

  • Zoro # G309615919

product price: $236.99
/ea
Free Shipping & Returns

Key Features

Compatible Gas Type
Argon, Carbon Dioxide
Outlet Connection Size
5/8"-18 (CGA 032/022)
Body Material
Brass
Number of Stages
Single Stage
Outlet Pressure (Maximum)
3,000 psig
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
0781G3656
Zoro #
G309615919
UPC #
-
Country of Origin
Mexico

Dimensions

Outlet Connection Size
5/8"-18 (CGA 032/022)
Gauge Diameter
1 1/2 in
Inlet Connection Size
0.960"-14(CGA 580)

Details

Item
Flowmeter Regulator
Compatible Gas Type
Argon, Carbon Dioxide
Body Material
Brass
Number of Stages
Single Stage
Outlet Pressure (Maximum)
3,000 psig
Application
MIG/TIG Welding
Diaphragm Material
Fabric-Reinforced Neoprene
Standards
ETL Listed, UL Standard 252
Features
Accurate, Consistent Flow Delivery Over the Life of the Cylinder, Back Pressure Compensated, External Self-Reseating Pressure Relief Valve (not Designed to Protect Downstream Equipment), Ideal for all Applications where Superior Dependability is Needed, Precision Needle Valve, Ensuring an Accurate Flow Rate, Even when Exceeding 50 cfh, Safety Overpressure Burst Mechanism Built into Flow Tube for Added Safety, Sintered Inlet Filter - Bronze
Seat Material
Urethane
Carbon Dioxide Flow Rate (Maximum)
70 cfh
Flowmeter Series
HRF2400 Pro
Inlet Connection Gender
Male
CGA Number
CGA 032/022 (Outlet), CGA 580 (Inlet)
Maximum Gauge Inlet Pressure
4,000 psig
Product Type
Flowmeter Regulator
Inlet Thread Direction
Right
Outlet Connection Type
UNC
Argon Flow Rate (Maximum)
70 cfh
Nitrogen Flow Rate (Maximum)
70 cfh
Helium Flow Rate (Maximum)
70 cfh
Outlet Connection Gender
Female
Inlet Connection Type
NGO
Inlet Pressure (Maximum)
3,000 psig

Description

Flowmeter Regulator, Compatible Gas Type Argon, Carbon Dioxide, Mounting Type Cylinder, Inlet Connection Gender Male, Inlet Thread Direction Right, Inlet Connection Size 0.960 In.-14(CGA 580), Inlet Connection Type NGO, Maximum Inlet Pressure 3,000 psig, Outlet Pressure (Maximum) 3,000 psig, Outlet Connection Gender Female, Outlet Connection Size 5/8 In.-18 (CGA 032/022), Outlet Connection Type UNC, Argon Flow Rate (Maximum) 70 cfh, Carbon Dioxide Flow Rate (Maximum) 70 cfh
