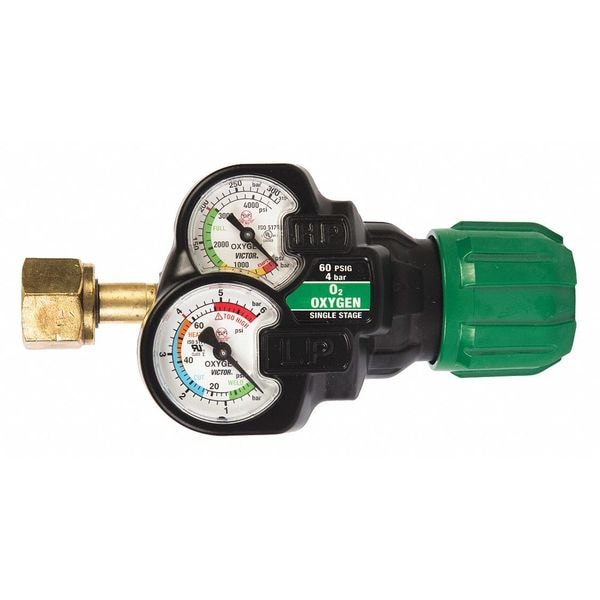

Victor Gas Regulator, Oxygen, Single Stage, 0.965"-14 Inlet, 9/16"-18 Outlet, 5 to 125 psi 0781-3627 - main

Gas Regulator, Oxygen, Single Stage, 0.965"-14 Inlet, 9/16"-18 Outlet, 5 to 125 psi

  • Mfr # 0781-3627

  • Zoro # G6570739

product price:  $257.99
/ea
Free Shipping & Returns

Key Features

Compatible Gas Type
Oxygen
Outlet Connection Size
9/16"-18
Body Material
Brass
Number of Stages
Single Stage
Outlet Pressure (Maximum)
60 psig
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
0781-3627
Zoro #
G6570739
UPC #
716352604031
Country of Origin
Mexico

Dimensions

Outlet Connection Size
9/16"-18
Gauge Diameter
2 in
Inlet Connection Size
0.965"-14
Overall Depth
4 in
Body Diameter
3.6 in
Overall Height
4 in
Overall Width
6 in
Dedupe with CGA Number and Inlet Connection Size
CGA 540

Details

Item
Gas Regulator
Compatible Gas Type
Oxygen
Body Material
Brass
Number of Stages
Single Stage
Outlet Pressure (Maximum)
60 psig
Outlet Pressure (Minimum)
0 psig
Regulator Supply Type
Cylinder
Diaphragm Material
Neoprene
Standards
ASTM G175, CGA E-4, ETL Listed, UL252
Delivery Pressure Range
5 to 125 psi
Stages
Single Stage
Supply Pressure Gauge
4,000 psi
Application
Industrial and General Fabrication, Light Fabrication, Repair and Maintenance, Structural Steel Fabrication
Duty Rating
Heavy Duty
Features
Consistent Pressure and Flow Delivery, Fully Enclosed, Highly Visible Modular Gauges for More Clarity With Robust Metal Gauge Guard, High Resistance to Oxygen Related Fires and Slam Knob Absorbs Impact in the Event of Cylinder Fall, Robust Seat Gives Optimum Performance
Inlet Connection Gender
Male
Inlet Thread Direction
Right Hand
Outlet Thread Direction
Right Hand
Outlet Connection Gender
Male
Inlet Connection Type
NGO
CGA Number
CGA 540
Inlet Pressure (Maximum)
3,000 psig
Regulator Series
Edge 2.0 ESS32
Maximum Gauge Outlet Pressure
4,000 psig
Outlet Connection Type
UNF
Control Type
Knob

Description

Gas Regulator, Maximum Gauge Outlet Pressure 4,000 psig, Number of Stages Single Stage, Compatible Gas Type Oxygen, Control Type Knob, Inlet Connection Type NGO, Inlet Connection Gender Male, Inlet Connection Size 0.965 In.-14, Outlet Pressure (Maximum) 60 psig, Outlet Connection Gender Male, Outlet Connection Size 9/16 In.-18, Outlet Connection Type UNF, Body Material Brass, Diaphragm Material Neoprene, CGA Number CGA 540

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
