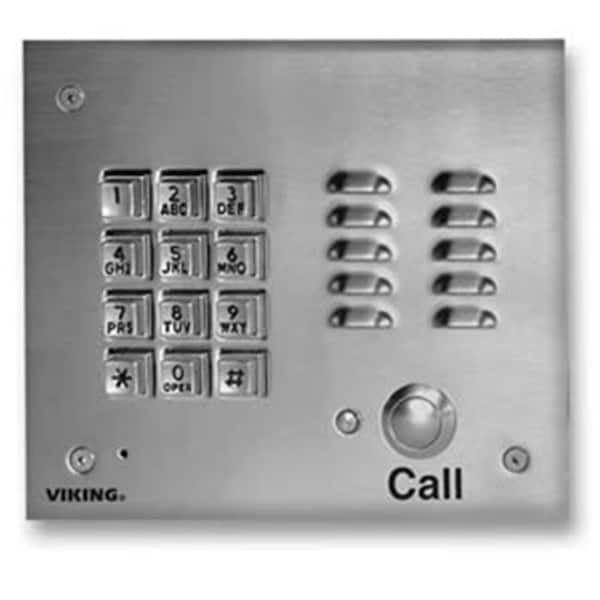

Viking Electronics VK-K-1700-3 SS Handsfree Phone W/ Key Pad

The K-1700-3 provides a tough and attractive handsfree phone for apartment and residential door entry or applications requiring a vandal resistant speaker phone.
When the “Call” button is pressed the K-1700-3 returns dial tone. The keypad may then be used to dial any number. If no Touch Tone is entered within 8 seconds CPC is detected a busy signal is detected or the programmable maximum call time has elapsed the K- 1700-3 will automatically disconnect. Alternatively the K-1700-3 may be disconnected by pressing the “Call” button again. The K-1700-3 comes complete with a standard flush mount rough-in box. In addition an optional weather resistant surface mount box is available.
For outdoor or harsh environments the K-1700-3 is available with Enhanced Weather Protection (EWP). EWP products feature rubber gaskets and boots closed cell foam gasketing hand soldered silicon sealed connections anti-corrosive gel filled butt connectors as well as urethane encapsulated circuit boards with internally sealed field-adjustable trim POTS and DIP switches.

Viking K-1700-3 Handsfree Speakerphone.

14 Gauge Stainless Steel Faceplate which comes with complete with a standard flush mount rough-in box.

Tough Durable and Vandal Resistant.

Phone Line Powered.

Optional EWP (Ehanced Weather Protection).

Keypad.

Vandal Resistant Features: 14 gauge louvered stainless steel faceplate with stainless steel speaker/mic screen heavy duty metal keypad and "Call" button.

Yellow "in-use" light.

Volume adjustments for microphone and speaker.

Selectable auto-answer feature.

Selectable push button disconnect.

Zinc plated steel rough-in box.

Optional VE-6x7 surface mount box.

Selectable maximum call time.

Selectable VOX switching speed.

Made in the USA.

1 Year Warranty.

Power: Telephone line powered 20V DC/20mA minimum.

Dimensions Overall:

x 6.5” x 2.6”.

Dimensions Box: 4.5” x 5.5” x 2.5".

Environmental: -26°C to 54°C (-15°F to 130°F) with 5% to 95% non- condensing humidity.

Speaker Volume: Approximately 70 db maximum @1m.

Connections: Standard - (1) two-position terminal block EWP - Gel-filled tip and ring connectors.

CPC Disconnect Time: 300ms minimum.
