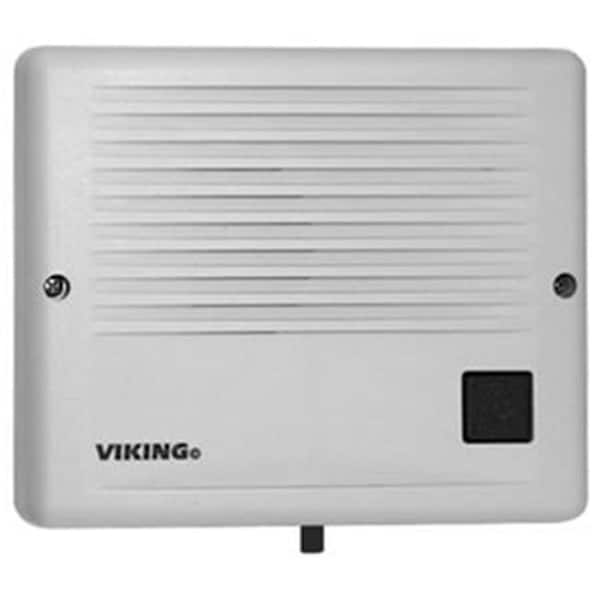

Viking Electronics VK-SR-1 Viking Single Line Loud Ringer

The Viking SR-1 will generate loud ringing from an analog ringing line or from a dry contact closure. There are 4 different ringing sounds to choose from. Loudness is easily adjusted with a volume control knob and test button. The Viking SR-1’s unique sounding ring is useful for employees that often work away from their desks allowing them to instantly recognize when their phone is ringing. A second set of contact inputs will trigger a door chime (doorbell) sound. This can be used to notify that a door has opened or used as a door bell or push for assistance button. The Viking SR-1 is easy to install and comes complete with a power supply and connections for an optional external speaker.

Single line loud ringing.

Night bell ringing.

Business/offices/small warehouses.

Floating employee.

Push Button for Assistance chime.

Push button doorbell.

Loud ringing from an analog line.

Loud ringing from a dry contact closure.

Choose one of four ringing sounds: Electronic warble (traditional loud ringer) Quadruple chime (four descending chime tones) Electronic Bell.

Adjustable volume control.

Provides a door chime tone for either a door bell door open sensor or “Push for Assistance” button.

Test button for setting volume.

Power supply included.

Test button for setting volume.

Made in the USA.

Power: 120V AC/13.8V AC 1.25A UL listed adapter provided.

Dimensions: 5.5 x 4.5 x 1.6.

Environmental: 0 C to 32 C (32 F to 90 F) with 5% to 95% non-condensing humidity.

Maximum Sound Pressure: 90 db 1 meter (nominal) 105 db with added 25AE Paging Horn.

Connections: 6 cage clamp screw terminals.
