  11. Motorized Varifocal Dome, Camera, 12V, 5MP

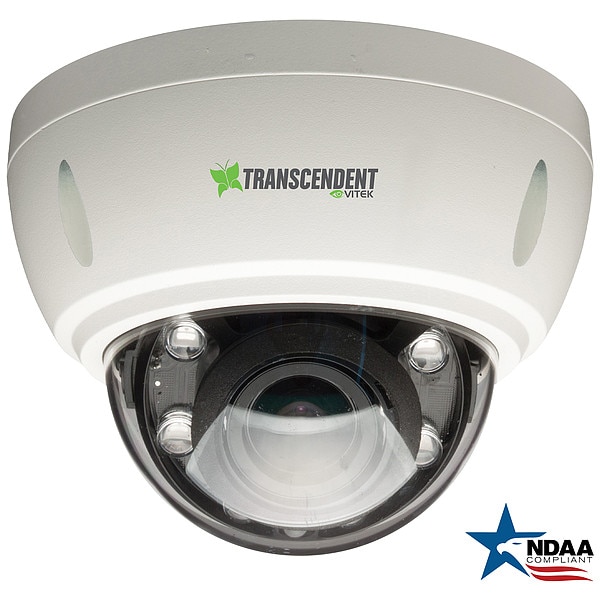

Vitek Motorized Varifocal Dome, Camera, 12V, 5MP VTD-T4D6HR5MD - main

Motorized Varifocal Dome, Camera, 12V, 5MP

  • Mfr # VTD-T4D6HR5MD

  • Zoro # G506153894

product price: $159.99
/ea
Free Shipping & Returns

Key Features

For Use With
VITEK Transcendent Series 5-in-1 Digital Video Recorders
Camera Design
Dome
Lens
Motorized Varifocal
Line Resolution
5 MP
Power Consumption
6 W
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VTD-T4D6HR5MD
Zoro #
G506153894
UPC #
00810023211310
Country of Origin
China

Dimensions

Focal Length (mm)
2.8 to 12 mm
Overall Height
3 3/8 in
Dia. (In.)
4 18/25 in
Height (In.)
3 13/32 in
Overall Diameter
4 3/4 in
Maximum Focal Length
12 mm
Minimum Focal Length
2.8 mm

Details

For Use With
VITEK Transcendent Series 5-in-1 Digital Video Recorders
Item
HD-TVI/AHD/CVI/CVBS Motorized Varifocal Dome,Camera
Camera Design
Dome
Lens
Motorized Varifocal
Line Resolution
5 MP
Power Consumption
6 W
Luminance Factor
0.0008 lux (B/W), 0.017 lux (Color)
Exposure Conditions
-4 to 140 Degrees F
S/N Ratio
More than 50dB
Min. Light Level (Lux)
0.017 Color, 0.0008 Black/White
Features
1/2.5 in 5.0 Megapixel Progressive Scan CMOS Sensor, 12VDC/24VAC Dual Voltage Operation, 2.8 to 12mm Motorized Varifocal Lens, 3 Year Warranty, 5MP@20fps/12.5fps, 4MP@30fps/25fps/15fps, 1080P@30fps/25fps, 6 Integrated High Power Dynamic IR LEDs with up to 165' IR Range, HD-TVI/HD-CVI/AHD/960H CVBS Video Output (Selectable), IP66 Weather Resistance, 4000V Lightning Protection, NDAA Compliant, Over 1500 ft HD Video Transmission (Depending on Cable Characteristics and Integrity), Supports CoC (Control over COAX), True Day/Night by IR Cut Filter, True Wide Dynamic Range (WDR), XD-DNR (3D-DNR/2D-DNR) Noise Reduction
S/N Ratio (dB)
Equal or More than 50
Display
Black and White; Color
Voltage
12V DC
Day/Night Capable
Day/Night
IP Rating
IP66
Indoor/Outdoor
Indoor, Outdoor
Camera Body Color
White
Pixels
2704 x 1950
Standards
NDAA Compliant
Detection Range
Up to 165 ft
Illumination
6 IR LEDs @ 165 ft
Mount
Wall
Digital Video Camera Image Sensor
1/2.5 CMOS
Scanning
Progressive
Type
Dome
Indoor/Outdoor Usage
Indoor, Outdoor
Body Color
White
Maximum Detection Distance
165 ft
Minimum Light Level
0.0008 lux
Resolution
5MP
Lens Type
Varifocal
Color Display
Black and White, Color
Resistance Properties
Weather Resistant
Maximum Operating Temperature
140 Degrees F
Output Type
AHD, CVBS, CVI, TVI
Image Sensor
1/2.5 CMOS
Night Capable
Day and Night
Input Type
No Inputs Included
Minimum Operating Temperature
-4 Degrees F
Operating Voltage
12V DC

Description

HD-TVI/AHD/CVI/CVBS Motorized Varifocal Dome,Camera, Body Color White, Maximum Focal Length 12 mm, Minimum Focal Length 2.8 mm, Camera Design Dome, Mounting Location Wall, Color Display Black and White, Color, Maximum Detection Distance 165 ft
