  11. IP Camera, 2.80mm Focal L, Fixed Lens, 2 MP
This item is Discontinued.

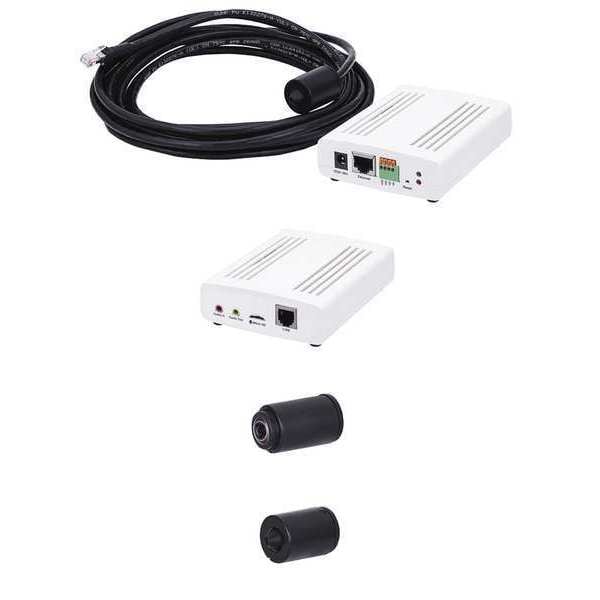

Vivotek IP Camera, 2.80mm Focal L, Fixed Lens, 2 MP VC8101-CU8163-H

IP Camera, 2.80mm Focal L, Fixed Lens, 2 MP (Discontinued)

  • Mfr # VC8101-CU8163-H
  • Zoro # G5893800
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VC8101-CU8163-H
Zoro #
G5893800
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

IR Illuminator Wavelength
850 nm
Focal Length
2.80 mm
Overall Length
4 1/8 in
Maximum Focal Length
3.7 mm
Overall Diameter
4 1/8 in

Details

For Use With
Network Video Recorders
Item
IP Camera
HD Resolution
1080p
Includes
Mounting Hardware
Camera Type
Color
Camera Design
Fisheye
Lens
Fixed
Power Required
8 to 36V DC, PoE
Connector Type
Ethernet
Line Resolution
2 MP
Min. Light Level
0.66 lux
Power Consumption
5.5 W
Scanning
Progressive
Luminance Factor
0.0 Lux
Day/Night Capable
Day/Night
S/N Ratio
53dB
Illumination
No
Power Supply
Not Included
Pixels
1920 (H) x 1080 (V)
IP Rating
IP66
Camera Body Color
White
Indoor / Outdoor
Indoor/Outdoor
Mount
Ceiling, Surface, Wall
Features
2 Camera Options: 2MP WDR Pinhole or 2MP WDR Fisheye Camera
Standards
IEEE 802.3af Compliant
Minimum Light Level
1.1 lux
Indoor/Outdoor Usage
Indoor
Color Display
Color
Minimum Operating Temperature
14 Degrees F
Input Type
No Inputs Included
Lens Type
Zoom
Resolution
1080p
Includes Power Supply
No
Body Color
White
Night Capable
Day and Night
Output Type
No Outputs Included
Image Sensor
1/2.7 CMOS
Maximum Operating Temperature
122 Degrees F

Description

IP Camera, Camera Design Fisheye, Lens Type Zoom, Maximum Focal Length 3.7 mm, Resolution 1080p, Compatible Connector RJ45, Image Sensor 1/2.7 CMOS, Body Color White, Color Display Color, Features 2 Camera Options: 2MP WDR Pinhole or 2MP WDR Fisheye Camera, For Use With Network Video Recorders, Includes Mounting Hardware, Includes Power Supply No, Indoor/Outdoor Usage Indoor, Input Type No Inputs Included, IP Rating IP66, IR Illuminator Wavelength 850 nm
