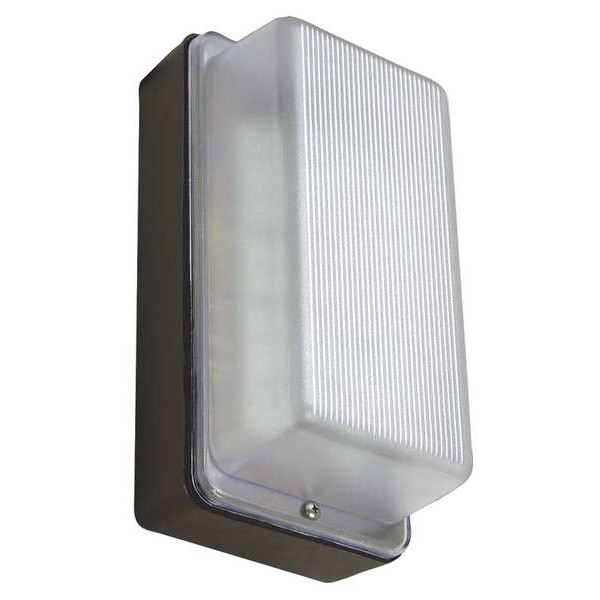

W F Harris Lighting LED Wall Fixture, 14W, 120V, 1000L 30-1K-LED - main

LED Wall Fixture, 14W, 120V, 1000L

  • Mfr # 30-1K-LED

  • Zoro # G4499354

product price: $132.99
/ea
Free Shipping & Returns

Key Features

Includes
LEDs and Drivers
Voltage
120 to 277V AC
Width
4 1/4 in
Height
10 1/4 in
Length
5 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
30-1K-LED
Zoro #
G4499354
UPC #
757156400795
Country of Origin
United States

Dimensions

Width
4 1/4 in
Height
10 1/4 in
Length
5 in
Fixture Length
5 in
Fixture Height
10 1/4 in
Recommended Mounting Height
8 ft
Fixture Width
4 1/4 in
Overall Height
10 1/4 in
Overall Length
5 in
Knockout Size
1/2 in
Mounting Height - Maximum
8 ft
Overall Width
4 1/4 in

Details

Includes
LEDs and Drivers
Item
Wall Pack
Voltage
120 to 277V AC
Series
Model 30
Light Technology
LED
Watts
10
Lens Material
UV-Stabilized Polycarbonate
Fixture Sensor Type
No Sensor Included
Lumens
1,200 lm
Housing Color
Bronze
Fixture Housing Material
Polycarbonate
CRI
73
Light Distribution
Hemispherical
LED Replacement For
100W INC; 23 to 26W CFL
Fixture Voltage
120 to 277
Description/Special Features
Lifetime Warranty Against Breakage on Lens and Housing, Rustproof, Vandal Resistant, White Lighting Class LEDs
Standards
#250.0-08, CSA C22.2, UL 1598, UL 8750
Operating Temp. Range
-40 Degrees to 50 Degrees C
Lumens Per Watt
120.0
Color Temperature
5000K
Sensor Type - Fixtures
No Sensor Included
Max. Fixture Wattage
14.0
Color Temp.
5000K
Warranty
Lifetime Warranty on Lens/Housing Against Breakage
Fixture Rated Life
100,000 hr
Fixture Lens Material
Polycarbonate
Type - Wall Pack Fixtures
Vandal-Resistant
Fixture Housing Color
Bronze
Housing Material
Polycarbonate
Color Rendering Index
73
Lamp Watts - Fixtures
10.0
Rated Life
100,000 hr
Temp. Range
-40 Degrees to 50 Degrees C
Fixture Wattage
10 W
Lumens per Watt
120 lm/W
Special Features
Lifetime Warranty Against Breakage on Lens and Housing, Rustproof, Vandal Resistant, White Lighting Class LEDs
Min. Operating Temp.
-40 Degrees F
Max. Operating Temp.
122 Degrees F
Lumen Selectable
Not Selectable
Operating Temperature - Minimum
-40 Degrees F
Light Distribution Type - IESNA
Type III
Color Selectable
Not Selectable
Mount Type
Surface
Number of Knockouts
6
Light Output
1,200 lm
Incandescent Wattage Equivalency
100 W
Operating Temperature - Maximum
122 Degrees F
Low Pressure Sodium Wattage Equivalency
18 W
Light Distribution Type - NEMA
NEMA 6x4
Number of Hubs
0
Finish
Bronze

Description

Wall Pack, Lumens 1,200 lm, Fixture Wattage 10 W, Voltage 120 to 277V AC, LED Replacement For 100W INC; 23 to 26W CFL, Fixture Sensor Type No Sensor Included, Light Technology LED, Color Temperature 5000K, Color Rendering Index 73, Height 10 1/4 in, Width 4 1/4 in, Rated Life 100,000 hr, Fixture Housing Color Bronze, Fixture Housing Material Polycarbonate, Fixture Lens Material Polycarbonate, Lumens per Watt 120 lm/W, Max. Operating Temp. 122 Degrees F, Min. Operating Temp. -40 Degrees F
