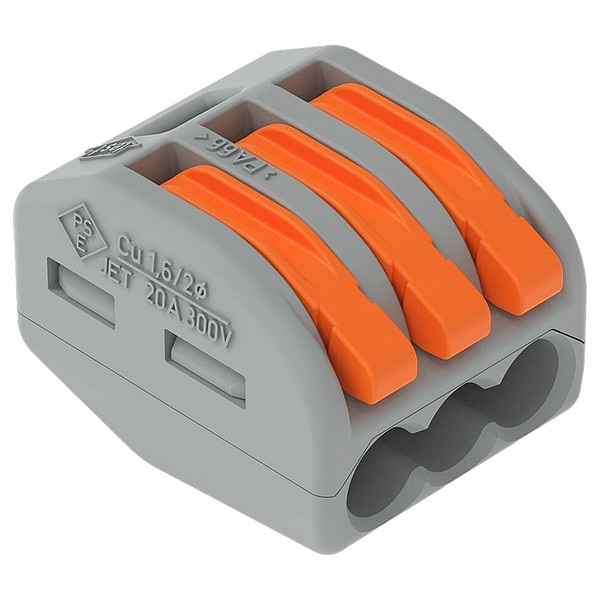

Splice Wire Connector, 12 AWG Max, 3 Port, Gray, Polycarbonate Insulation, 600 V, 20 A, 5 PK
Mfr # 222-413/PW05-0005
Zoro # G812175122
product price: $5.99
/pk 5, $1.20/eaKey Features
Type
Splice
Color
Gray
Maximum Wire Size
12 AWG
Insulation Material
Polycarbonate
Maximum Voltage
600 V
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
222-413/PW05-0005
Zoro #
G812175122
UPC #
4044918935722
Country of Origin
Germany
Dimensions
Maximum Wire Size
12 AWG
Minimum Wire Size
28 AWG
For Minimum Wire Size - Solid
28 AWG
For Maximum Wire Size - Stranded
12 AWG
Strip Length
3/8 in
Overall Width
0.69 in
For Minimum Wire Size - Stranded
28 AWG
For Maximum Wire Size - Solid
12 AWG
Overall Height
0.57 in
Overall Length
0.8 in
Details
Item
Splice Wire Connector
Type
Splice
Color
Gray
Insulation Material
Polycarbonate
Maximum Voltage
600 V
Current
20 A
Number of Ports
3
UL 94 Flammability Rating
V-0
RoHS Compliant
No
Standards
IEC/EN, UL Listed
Special Features
Insulation Materials
For Conductor Material
Aluminum, Copper
Compatible with Product Type
Conductor
Description
Wire Connector, Color Gray, For Conductor Material Aluminum, Copper, For Minimum Wire Size - Stranded 28 AWG, For Maximum Wire Size - Stranded 12 AWG, Housing Material Polycarbonate, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Overall Height 0.57 in, Overall Length 0.8 in, Overall Width 0.69 in, Connector Type Lever, UL 94 Flammability Rating V-0, Number of Ports 3, RoHS Compliant No, Standards IEC/EN, UL Listed, Compatible with Product Type Conductor, Current 20 A
