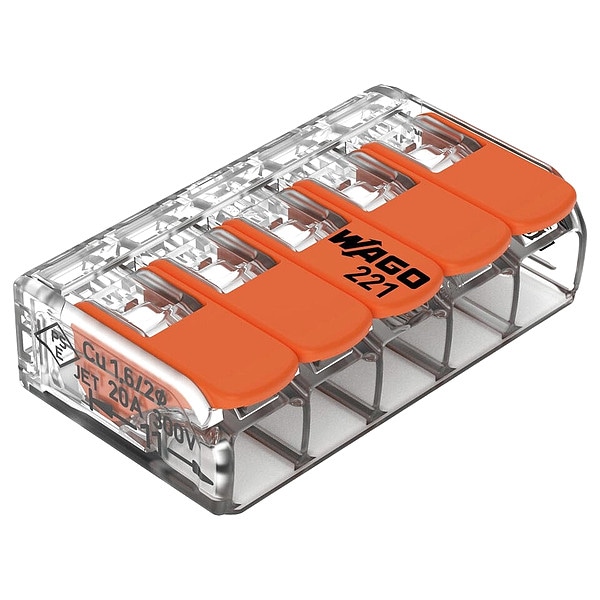

Splice Wire Connector, 12 AWG Max, 5 Port, Transparent, Polycarbonate Insulation, 600 V, 32 A
Mfr # 221-415/K006-0000
Zoro # G212175104
product price: $10.19
/pk 10, $1.02/eaKey Features
Type
Splice
Color
Transparent
Maximum Wire Size
12 AWG
Minimum Wire Size
24 AWG
Insulation Material
Polycarbonate
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
221-415/K006-0000
Zoro #
G212175104
UPC #
4055143637077
Country of Origin
Germany
Dimensions
Maximum Wire Size
12 AWG
Minimum Wire Size
24 AWG
Overall Height
0.33 in
Strip Length
7/16 in
Overall Length
0.73 in
Overall Width
1.18 in
For Maximum Wire Size - Stranded
12 AWG
For Minimum Wire Size - Stranded
24 AWG
For Maximum Wire Size - Solid
12 AWG
For Minimum Wire Size - Solid
24 AWG
Details
Item
Splice Wire Connector
Type
Splice
Color
Transparent
Insulation Material
Polycarbonate
Maximum Voltage
600 V
Current
32 A
Number of Ports
5
UL 94 Flammability Rating
V-2
RoHS Compliant
No
Standards
IEC/EN, UL Listed
Compatible with Product Type
Conductor
For Conductor Material
Copper
Description
Splicing Connector, Color Transparent, For Conductor Material Copper, For Minimum Wire Size - Stranded 24 AWG, For Maximum Wire Size - Stranded 12 AWG, Housing Material Polycarbonate, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Overall Height 0.33 in, Overall Length 0.73 in, Overall Width 1.18 in, Connector Type Splice, UL 94 Flammability Rating V-2, Number of Ports 5, RoHS Compliant No, Standards IEC/EN, UL Listed, Compatible with Product Type Conductor, Current 32 A
