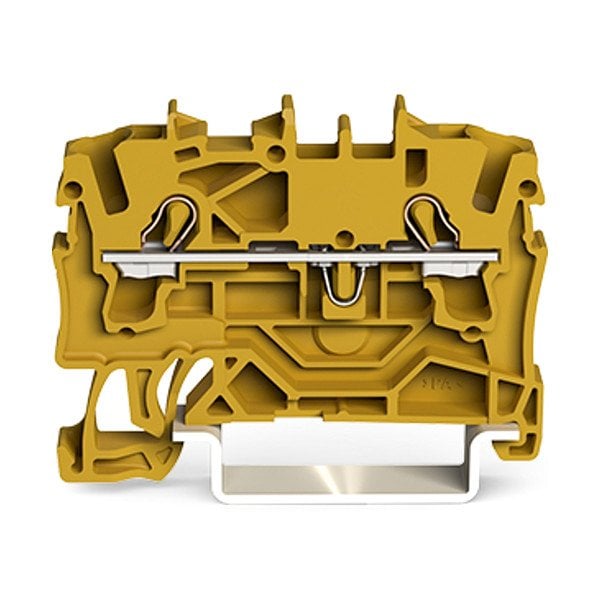

Terminal Block, 1.9" L, 1.55" W, 800V

  • Mfr # 2002-1206
  • Zoro # G822935396
product price:
$
1.85
/ea

Key Features

Overall Depth
0.2 in
Number of Tiers
1
6-Pole Jumper Compatibility
2002-406, 2002-406/000-005, 2002-406/000-006, 2002-406/020-000, 2002-476, 2002-481/011-000
Current
24 A
2-Pole Jumper Compatibility
2002-400, 2002-402, 2002-402/000-005, 2002-402/000-006, 2002-423, 2002-423/000-005, 2002-423/000-006, 2002-424, 2002-424/000-005, 2002-424/000-006, 2002-433, 2002-434, 2002-435, 2002-436, 2002-437, 2002-438, 2002-439, 2002-440, 2002-472, 2002-473/011-000
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
2002-1206
Zoro #
G822935396
UPC #
-
Country of Origin
Germany
Number of Tiers
1
6-Pole Jumper Compatibility
2002-406, 2002-406/000-005, 2002-406/000-006, 2002-406/020-000, 2002-476, 2002-481/011-000
Current
24 A
2-Pole Jumper Compatibility
2002-400, 2002-402, 2002-402/000-005, 2002-402/000-006, 2002-423, 2002-423/000-005, 2002-423/000-006, 2002-424, 2002-424/000-005, 2002-424/000-006, 2002-433, 2002-434, 2002-435, 2002-436, 2002-437, 2002-438, 2002-439, 2002-440, 2002-472, 2002-473/011-000
Terminal Block Type
Pass-Through
Number of Poles
1
Item
Terminal Block
Maximum Voltage
800 V
Standards
ABS EN 60947 24-0152298-PDA, AEx UL 60079 E185892 (AEx eb IIC resp. Ex eb IIC), ATEX EN 60079 PTB 03 ATEX 1162 U (II2G Ex eb IIC Gb, IM2 Ex eb Imb), ATEX-Attestation of Conformity, CCA EN 60947 NTR NL-8054, CCC GB/T 3836.3 2020312313000238 (Ex eb IIC Gb, Ex eb I Mb), CE, CSA C22.2 No. 158 154112, DEKRA EN 60947 71-149763, DNV GL TAE00001V2, IEC 60079, KEMA/KEUR EN 60947 71-124163, PRS TE/1094/880590/23, RoHS Compliant, TUV 12.1307 U, UKCA, UL 1059, UL File No. E45172
Housing Material
Polyamide 66
Connection Type
Push-In
For Conductor Type
Solid, Stranded
UL 94 Flammability Rating
V-0
Special Features
2 Jumper Slots, Front-Entry Wiring
Minimum Operating Temperature
-60 Degrees C
For Conductor Material
Copper
Series
2002
Housing Color
Yellow
Circuit Protection Type
None
Number of Connections
2

Dimensions

Overall Depth
0.2 in
Overall Width
1.55 in
Wire Rope Length
1.9 in
For Maximum Wire Size
12 AWG
For Minimum Wire Size
22 AWG
For Channel Rail Size
35 mm
Strip Length
15/32 in
Overall Length
1.9 in
Length
1.9 in

Description

Terminal Block, Circuit Protection Type None, Connection Type Push-In, Current 24 A, For Minimum Wire Size 22 AWG, For Maximum Wire Size 12 AWG, Housing Color Yellow, Maximum Voltage 800 V, Mounting Type DIN Rail, Number of Poles 1, Number of Tiers 1, For Conductor Material Copper, For Conductor Type Solid, Stranded, Overall Depth 0.2 in, Overall Length 1.9 in, Overall Width 1.55 in
