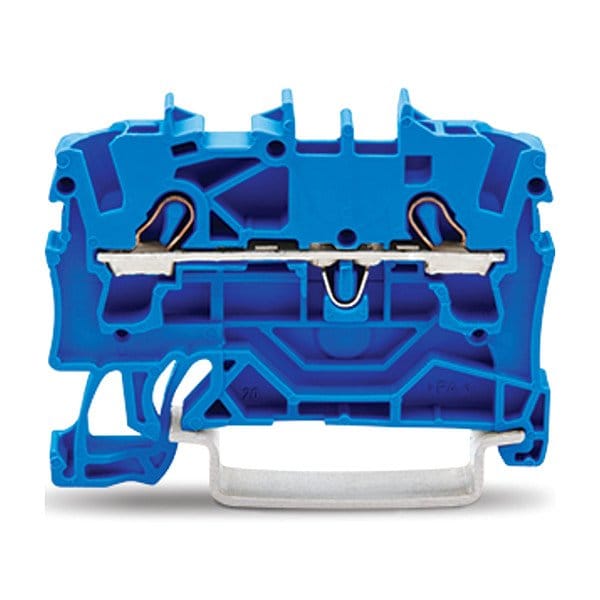

Terminal Block, 1.9" L, 1.55" W, 800V, Blue

  • Mfr # 2002-1204

  • Zoro # G922935708

product price:
$
1.79
/ea

Key Features

Standards
ABS EN 60947 24-0152298-PDA, AEx UL 60079 E185892 (AEx eb IIC resp. Ex eb IIC), ATEX EN 60079 PTB 03 ATEX 1162 U (II2G Ex eb IIC Gb, IM2 Ex eb Imb), ATEX-Attestation of Conformity, CCA EN 60947 NTR NL-8054, CCC GB/T 3836.3 2020312313000238 (Ex eb IIC Gb, Ex eb I Mb), CE, CSA C22.2 No. 158 154112, DEKRA EN 60947 71-149763, DNV GL TAE00001V2, IEC 60079, KEMA/KEUR EN 60947 71-124163, PRS TE/1094/880590/23, RoHS Compliant, TUV 12.1307 U, UKCA, UL 1059, UL File No. E45172
Current
24 A
Terminal Block Type
Pass-Through
Housing Material
Polyamide 66
Strip Length
15/32 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2002-1204
Zoro #
G922935708
UPC #
-
Country of Origin
Germany

Dimensions

Strip Length
15/32 in
Overall Depth
0.2 in
For Maximum Wire Size
12 AWG
Wire Rope Length
1.9 in
For Channel Rail Size
35 mm
Overall Width
1.55 in
For Minimum Wire Size
22 AWG
Overall Length
1.9 in
Length
1.9 in

Details

Standards
ABS EN 60947 24-0152298-PDA, AEx UL 60079 E185892 (AEx eb IIC resp. Ex eb IIC), ATEX EN 60079 PTB 03 ATEX 1162 U (II2G Ex eb IIC Gb, IM2 Ex eb Imb), ATEX-Attestation of Conformity, CCA EN 60947 NTR NL-8054, CCC GB/T 3836.3 2020312313000238 (Ex eb IIC Gb, Ex eb I Mb), CE, CSA C22.2 No. 158 154112, DEKRA EN 60947 71-149763, DNV GL TAE00001V2, IEC 60079, KEMA/KEUR EN 60947 71-124163, PRS TE/1094/880590/23, RoHS Compliant, TUV 12.1307 U, UKCA, UL 1059, UL File No. E45172
Current
24 A
Terminal Block Type
Pass-Through
Housing Material
Polyamide 66
Minimum Operating Temperature
-60 Degrees C
Circuit Protection Type
None
Item
Terminal Block
Number of Tiers
1
Number of Connections
2
Number of Poles
1
6-Pole Jumper Compatibility
2002-406, 2002-406/000-005, 2002-406/000-006, 2002-406/020-000, 2002-476, 2002-481/011-000
UL 94 Flammability Rating
V-0
Housing Color
Blue
For Conductor Type
Solid, Stranded
Special Features
2 Jumper Slots, Front-Entry Wiring
Connection Type
Push-In
For Conductor Material
Copper
2-Pole Jumper Compatibility
2002-400, 2002-402, 2002-402/000-005, 2002-402/000-006, 2002-423, 2002-423/000-005, 2002-423/000-006, 2002-424, 2002-424/000-005, 2002-424/000-006, 2002-433, 2002-434, 2002-435, 2002-436, 2002-437, 2002-438, 2002-439, 2002-440, 2002-472, 2002-473/011-000
Maximum Voltage
800 V
Series
2002

Description

Terminal Block, Circuit Protection Type None, Connection Type Push-In, Current 24 A, For Minimum Wire Size 22 AWG, For Maximum Wire Size 12 AWG, Housing Color Blue, Maximum Voltage 800 V, Mounting Type DIN Rail, Number of Poles 1, Number of Tiers 1, For Conductor Material Copper, For Conductor Type Solid, Stranded, Overall Depth 0.2 in, Overall Length 1.9 in, Overall Width 1.55 in
