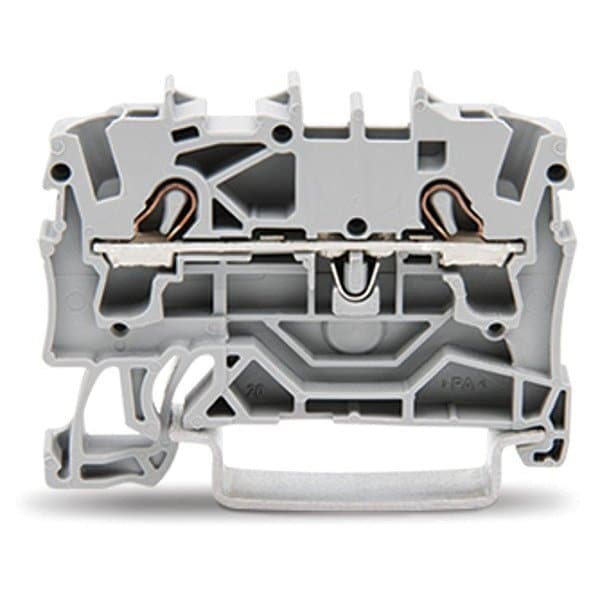

Terminal Block, 1.9" L, 1.55" W, 800V, Gray

  • Mfr # 2002-1209

  • Zoro # G522935719

product price:  $1.85
/ea

Key Features

For Minimum Wire Size
22 AWG
Standards
ABS EN 60947 24-0152298-PDA, AEx UL 60079 E185892 (AEx eb IIC resp. Ex eb IIC), ATEX EN 60079 PTB 03 ATEX 1162 U (II2G Ex eb IIC Gb, IM2 Ex eb Imb), ATEX-Attestation of Conformity, CCA EN 60947 NTR NL-8054, CCC GB/T 3836.3 2020312313000238 (Ex eb IIC Gb, Ex eb I Mb), CE, CSA C22.2 No. 158 154112, DEKRA EN 60947 71-149763, DNV GL TAE00001V2, IEC 60079, KEMA/KEUR EN 60947 71-124163, PRS TE/1094/880590/23, RoHS Compliant, TUV 12.1307 U, UKCA, UL 1059, UL File No. E45172
Overall Depth
0.2 in
Strip Length
15/32 in
Number of Tiers
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2002-1209
Zoro #
G522935719
UPC #
-
Country of Origin
Germany

Dimensions

For Minimum Wire Size
22 AWG
Overall Depth
0.2 in
Strip Length
15/32 in
Overall Width
1.55 in
For Maximum Wire Size
12 AWG
Wire Rope Length
1.9 in
For Channel Rail Size
35 mm
Overall Length
1.9 in

Details

Standards
ABS EN 60947 24-0152298-PDA, AEx UL 60079 E185892 (AEx eb IIC resp. Ex eb IIC), ATEX EN 60079 PTB 03 ATEX 1162 U (II2G Ex eb IIC Gb, IM2 Ex eb Imb), ATEX-Attestation of Conformity, CCA EN 60947 NTR NL-8054, CCC GB/T 3836.3 2020312313000238 (Ex eb IIC Gb, Ex eb I Mb), CE, CSA C22.2 No. 158 154112, DEKRA EN 60947 71-149763, DNV GL TAE00001V2, IEC 60079, KEMA/KEUR EN 60947 71-124163, PRS TE/1094/880590/23, RoHS Compliant, TUV 12.1307 U, UKCA, UL 1059, UL File No. E45172
Number of Tiers
1
Housing Color
Gray
Series
2002
Special Features
2 Jumper Slots, Front-Entry Wiring
2-Pole Jumper Compatibility
2002-400, 2002-402, 2002-402/000-005, 2002-402/000-006, 2002-423, 2002-423/000-005, 2002-423/000-006, 2002-424, 2002-424/000-005, 2002-424/000-006, 2002-433, 2002-434, 2002-435, 2002-436, 2002-437, 2002-438, 2002-439, 2002-440, 2002-472, 2002-473/011-000
Number of Connections
2
6-Pole Jumper Compatibility
2002-406, 2002-406/000-005, 2002-406/000-006, 2002-406/020-000, 2002-476, 2002-481/011-000
Minimum Operating Temperature
-60 Degrees C
Maximum Voltage
800 V
Item
Terminal Block
Connection Type
Push-In
UL 94 Flammability Rating
V-0
Circuit Protection Type
None
For Conductor Material
Copper
For Conductor Type
Solid, Stranded
Number of Poles
1
Current
24 A
Housing Material
Polyamide 66
Terminal Block Type
Pass-Through

Description

Terminal Block, Circuit Protection Type None, Connection Type Push-In, Current 24 A, For Minimum Wire Size 22 AWG, For Maximum Wire Size 12 AWG, Housing Color Gray, Maximum Voltage 800 V, Mounting Type DIN Rail, Number of Poles 1, Number of Tiers 1, For Conductor Material Copper, For Conductor Type Solid, Stranded, Overall Depth 0.2 in, Overall Length 1.9 in, Overall Width 1.55 in
