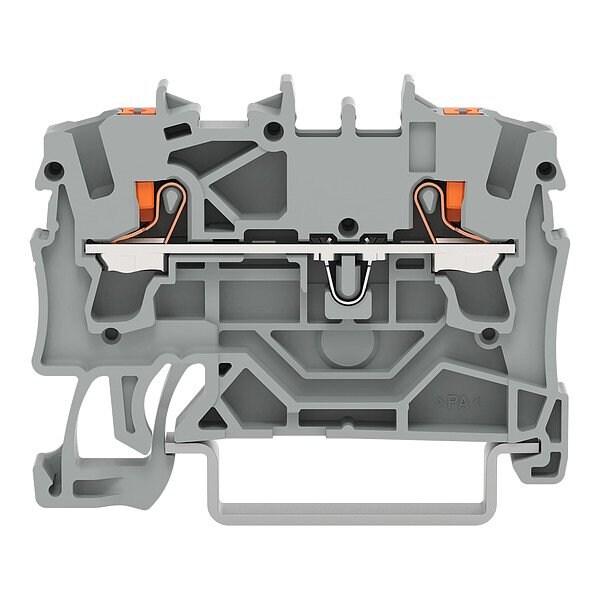

Terminal Block, 1.9" L, 1.55" W, 800V, Gray

  • Mfr # 2202-1201

  • Zoro # G422935819

product price:
$
1.85
/ea

Key Features

Number of Poles
1
Connection Type
Push-In
For Maximum Wire Size
12 AWG
Overall Width
1.55 in
Current
24 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2202-1201
Zoro #
G422935819
UPC #
-
Country of Origin
Germany

Dimensions

For Maximum Wire Size
12 AWG
Overall Width
1.55 in
Wire Rope Length
1.9 in
For Channel Rail Size
35 mm
Overall Depth
0.2 in
For Minimum Wire Size
22 AWG
Strip Length
15/32 in
Overall Length
1.9 in

Details

Item
Terminal Block
Number of Poles
1
Connection Type
Push-In
Current
24 A
Maximum Voltage
800 V
6-Pole Jumper Compatibility
2002-406, 2002-406/000-005, 2002-406/000-006, 2002-406/020-000, 2002-476, 2002-481/011-000
2-Pole Jumper Compatibility
2002-400, 2002-402, 2002-402/000-005, 2002-402/000-006, 2002-423, 2002-423/000-005, 2002-423/000-006, 2002-424, 2002-424/000-005, 2002-424/000-006, 2002-433, 2002-434, 2002-435, 2002-436, 2002-437, 2002-438, 2002-439, 2002-440, 2002-472, 2002-473/011-000
Series
2202
Number of Tiers
1
For Conductor Type
Solid, Stranded
Special Features
2 Jumper Slots, Front-Entry Wiring
Minimum Operating Temperature
-60 Degrees C
For Conductor Material
Copper
Number of Connections
2
Circuit Protection Type
None
Housing Color
Gray
Terminal Block Type
Pass-Through
Standards
ABS 24-0095985-PDA, Aex UL 60079 E185892 (AEx eb IIC resp. Ex eb IIC), ATEX EN IEC 60079-0 PTB 18 ATEX 1005 U (II 2 G Ex eb IIC Gb bzw. I M 2 Ex eb I Mb), ATEX-Attestation of Conformity, BV IEC 60947 58186/A0 BV, CCA EN 60947 NTR NL 7950, CCC GB/T 3836.3 2020312313000169, CE, CSA C22.2 70173745, DNV GL TAE00003JT, IEC 60079 IECEx PTB 18.0012U (Ex eb IIC Gb and Ex eb I Mb), KEMA/KEUR EN 60947 71-124827, LR 19/20050, RoHS Compliant, UKCA, UL 1059 UL-CA-L45172-6189178-11508102-1
UL 94 Flammability Rating
V-0
Housing Material
Polyamide 66

Description

Terminal Block, Circuit Protection Type None, Connection Type Push-In, Current 24 A, For Minimum Wire Size 22 AWG, For Maximum Wire Size 12 AWG, Housing Color Gray, Maximum Voltage 800 V, Mounting Type DIN Rail, Number of Poles 1, Number of Tiers 1, For Conductor Material Copper, For Conductor Type Solid, Stranded, Overall Depth 0.2 in, Overall Length 1.9 in, Overall Width 1.55 in
