Shop WAGO

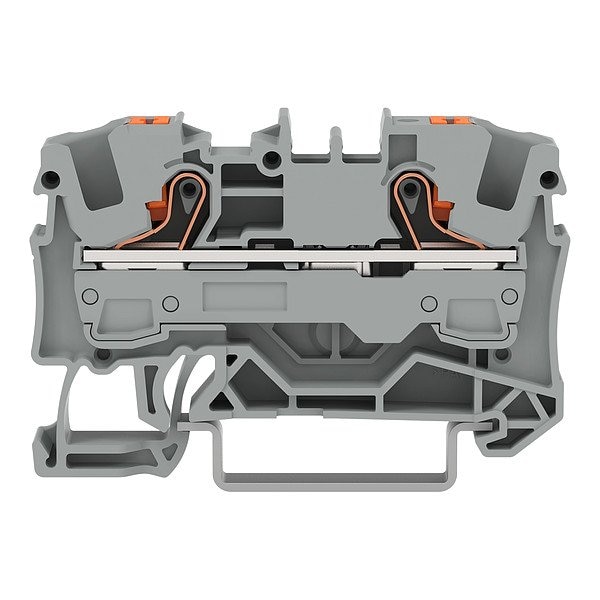

Terminal Block, 2.25" L, 1.55" W, 800V, Gray

  • Mfr # 2206-1201

  • Zoro # G522935788

product price:  $3.45
/ea

Key Features

For Conductor Material
Copper
For Conductor Type
Solid, Stranded
Special Features
2 Jumper Slots, Front-Entry Wiring
Strip Length
19/32 in
Number of Connections
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2206-1201
Zoro #
G522935788
UPC #
-
Country of Origin
Germany

Dimensions

Strip Length
19/32 in
For Maximum Wire Size
8 AWG
Overall Width
1.55 in
Overall Depth
0.29 in
Wire Rope Length
2.25 in
For Minimum Wire Size
20 AWG
For Channel Rail Size
35 mm
Overall Length
2.25 in

Details

For Conductor Material
Copper
For Conductor Type
Solid, Stranded
Special Features
2 Jumper Slots, Front-Entry Wiring
Item
Terminal Block
Number of Connections
2
Current
41 A
Number of Poles
1
UL 94 Flammability Rating
V-0
2-Pole Jumper Compatibility
2006-402, 2006-433, 2006-434, 2006-435
Circuit Protection Type
None
Maximum Voltage
800 V
Standards
ABS 24-0095985-PDA, AEX UL 60079 E 185892 (AEx eb IIC, Ex eb IIC), ATEX IEC 60079-0 PTB 18 ATEX 1007 U (II 2 Ex eb IIC Gb bzw. I M 2 Ex eb I Mb), ATEX-Attestation of Conformity, BV IEC 60947 58186/A0 BV, CCC EN 60947 NTR NL-7957, CCC GB/T 3836.3 2020312313000171 (Ex eb IIC Gb, Ex eb I Mb), CE, CSA C22.2 70175034, DNV GL TAE00003JTLR 19/20050, IEC 60079 IECEx PTB 18.0014U (Ex eb IIC Gb and Ex eb I Mb), KEMA/KEUR EN 60947 71-125861, RoHS Compliant, TUV 19.0087 U, UKCA, UL C22.2 No. 158 E45172
Housing Material
Polyamide 66
Series
2206
Housing Color
Gray
Number of Tiers
1
Minimum Operating Temperature
-60 Degrees C
Connection Type
Push-In
Terminal Block Type
Pass-Through

Description

Terminal Block, Circuit Protection Type None, Connection Type Push-In, Current 41 A, For Minimum Wire Size 20 AWG, For Maximum Wire Size 8 AWG, Housing Color Gray, Maximum Voltage 800 V, Mounting Type DIN Rail, Number of Poles 1, Number of Tiers 1, For Conductor Material Copper, For Conductor Type Solid, Stranded, Overall Depth 0.29 in, Overall Length 2.25 in, Overall Width 1.55 in
