Shop WAGO

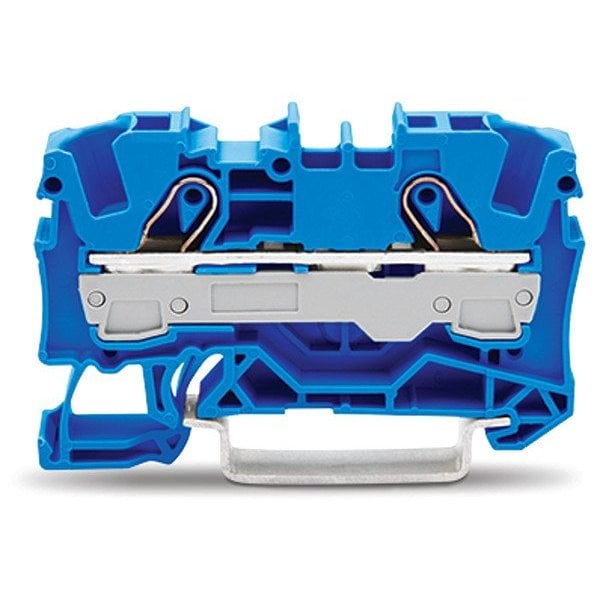

Terminal Block, 2.26" L, 1.55" W, 800V, Blue

  • Mfr # 2006-1204

  • Zoro # G722935830

product price:  $3.19
/ea

Key Features

Wire Rope Length
2.26 in
For Channel Rail Size
35 mm
UL 94 Flammability Rating
V-0
Series
2006
2-Pole Jumper Compatibility
2006-402, 2006-433, 2006-434, 2006-435
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2006-1204
Zoro #
G722935830
UPC #
-
Country of Origin
Germany

Dimensions

Wire Rope Length
2.26 in
For Channel Rail Size
35 mm
For Maximum Wire Size
8 AWG
Overall Depth
0.29 in
Overall Width
1.55 in
Strip Length
19/32 in
For Minimum Wire Size
20 AWG
Overall Length
2.26 in

Details

UL 94 Flammability Rating
V-0
Series
2006
2-Pole Jumper Compatibility
2006-402, 2006-433, 2006-434, 2006-435
Connection Type
Push-In
Terminal Block Type
Pass-Through
Circuit Protection Type
None
Housing Color
Blue
For Conductor Material
Copper
Housing Material
Polyamide 66
Number of Connections
2
Number of Tiers
1
Standards
ABS EN 60947 24-0152298-PDA, AEx UL 60079 E 185892 (AEx eb IIC Gb, Ex eb IIC Gb), ATEX EN 60079 PTB 05 ATEX 1030 U (II 2 G Ex eb IIC Gb bzw. I M 2 Ex eb I Mb), ATEX-Attestation of Conformity, CCA EN 60947 NTR NL 7925/1, CCA IEC 60947 71-122840 REV.1, CCCEx GB/T 3836.3 2020312313000231 (Ex eb IIC Gb, Ex eb I Mb), CE, CSA C22.2 No. 158 1543858, DNV GL TAE00001V2, IEC 60079 TUV 12.1310 U, PRS TE/1094/880590/23, RoHS Compliant, UKCA, UL 1059, UL File No. E45172
Current
41 A
Item
Terminal Block
For Conductor Type
Solid, Stranded
Maximum Voltage
800 V
Number of Poles
1
Special Features
2 Jumper Slots, Front-Entry Wiring
Minimum Operating Temperature
-60 Degrees C

Description

Terminal Block, Circuit Protection Type None, Connection Type Push-In, Current 41 A, For Minimum Wire Size 20 AWG, For Maximum Wire Size 8 AWG, Housing Color Blue, Maximum Voltage 800 V, Mounting Type DIN Rail, Number of Poles 1, Number of Tiers 1, For Conductor Material Copper, For Conductor Type Solid, Stranded, Overall Depth 0.29 in, Overall Length 2.26 in, Overall Width 1.55 in
