Shop WAGO

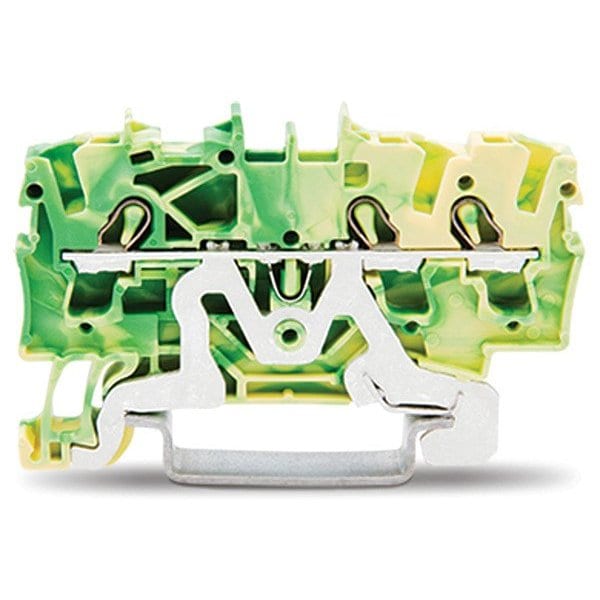

Terminal Block, 2.33" L, Green; Yellow

  • Mfr # 2002-1307

  • Zoro # G822935440

product price:  $7.19
/ea

Key Features

Number of Tiers
1
Terminal Block Type
Grounding
For Channel Rail Size
35 mm
Wire Rope Length
2.33 in
6-Pole Jumper Compatibility
2002-406, 2002-406/000-005, 2002-406/000-006, 2002-406/020-000, 2002-476, 2002-481/011-000
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2002-1307
Zoro #
G822935440
UPC #
-
Country of Origin
Germany

Dimensions

For Channel Rail Size
35 mm
Wire Rope Length
2.33 in
For Minimum Wire Size
22 AWG
For Maximum Wire Size
12 AWG
Overall Depth
0.2 in
Strip Length
15/32 in
Overall Length
2.33 in

Details

Number of Tiers
1
Terminal Block Type
Grounding
6-Pole Jumper Compatibility
2002-406, 2002-406/000-005, 2002-406/000-006, 2002-406/020-000, 2002-476, 2002-481/011-000
Housing Material
Polyamide 66
Number of Poles
1
Item
Terminal Block
Minimum Operating Temperature
-60 Degrees C
Housing Color
Green, Yellow
2-Pole Jumper Compatibility
2002-400, 2002-402, 2002-402/000-005, 2002-402/000-006, 2002-423, 2002-423/000-005, 2002-423/000-006, 2002-424, 2002-424/000-005, 2002-424/000-006, 2002-433, 2002-434, 2002-435, 2002-436, 2002-437, 2002-438, 2002-439, 2002-440, 2002-472, 2002-473/011-000
Connection Type
Push-In
Circuit Protection Type
None
For Conductor Type
Solid, Stranded
Number of Connections
3
For Conductor Material
Copper
Standards
ABS EN 60947 24-0152298-PDA, AEx UL 60079 E185892 (AEx eb IIC resp. Ex eb IIC), ATEX EN 60079 PTB 03 ATEX 1162 U (II2G Ex eb IIC Gb, IM2 Ex eb Imb), ATEX-Attestation of Conformity, CCA EN 60947 NTR NL-8054, CCC GB/T 3836.3 2020312313000238 (Ex eb IIC Gb, Ex eb I Mb), CE, CSA C22.2 No. 158 154112, DEKRA EN 60947 71-149763, DNV GL TAE00001V2, IEC 60079, KEMA/KEUR EN 60947 71-124163, PRS TE/1094/880590/23, RoHS Compliant, TUV 12.1307 U, UKCA, UL 1059, UL File No. E45172
Series
2002
UL 94 Flammability Rating
V-0
Special Features
2 Jumper Slots, Front-Entry Wiring

Description

Terminal Block, Circuit Protection Type None, Connection Type Push-In, Current Not Applicable, For Minimum Wire Size 22 AWG, For Maximum Wire Size 12 AWG, Housing Color Green, Yellow, Maximum Voltage Not Applicable, Mounting Type DIN Rail, Number of Poles 1, Number of Tiers 1, For Conductor Material Copper, For Conductor Type Solid, Stranded, Overall Depth 0.2 in, Overall Length 2.33 in
