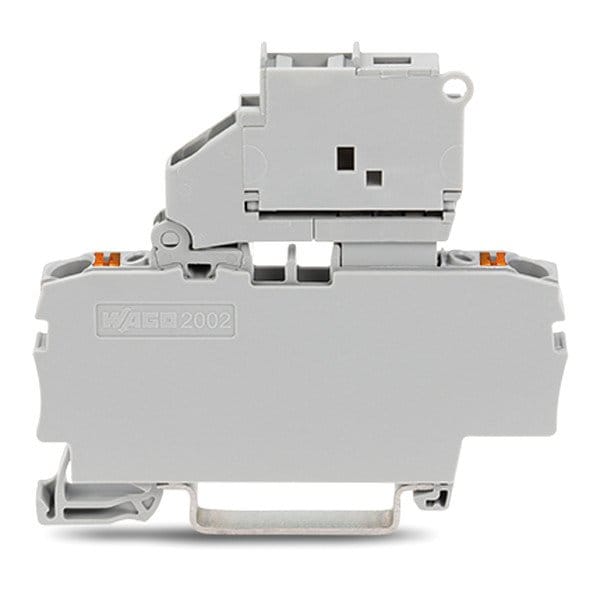

Terminal Block, 2.6" L, 250V, Gray

  • Mfr # 2202-1611

  • Zoro # G122935362

product price:  $10.39
/ea

Key Features

Number of Connections
2
Strip Length
15/32 in
Overall Depth
0.24 in
Connection Type
Push-In
Wire Rope Length
2.6 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2202-1611
Zoro #
G122935362
UPC #
-
Country of Origin
Germany

Dimensions

Strip Length
15/32 in
Overall Depth
0.24 in
Wire Rope Length
2.6 in
For Minimum Wire Size
22 AWG
For Channel Rail Size
35 mm
For Maximum Wire Size
12 AWG
For Fuse Diameter
5 mm
For Fuse Length
20 mm
Overall Length
2.6 in

Details

Number of Connections
2
Connection Type
Push-In
For Conductor Type
Solid, Stranded
Housing Material
Polyamide 66
Special Features
2 Jumper Slots, Front-Entry Wiring
Housing Color
Gray
For Conductor Material
Copper
Terminal Block Type
Fuse Holder
Series
2202
Maximum Voltage
250 V
Number of Poles
1
6-Pole Jumper Compatibility
2002-406, 2002-406/000-005, 2002-406/000-006, 2002-406/020-000, 2002-476, 2002-481/011-000
Number of Tiers
1
2-Pole Jumper Compatibility
2002-400, 2002-402, 2002-402/000-005, 2002-402/000-006, 2002-423, 2002-423/000-005, 2002-423/000-006, 2002-424, 2002-424/000-005, 2002-424/000-006, 2002-433, 2002-434, 2002-435, 2002-436, 2002-437, 2002-438, 2002-439, 2002-440, 2002-472, 2002-473/011-000
Item
Terminal Block
Circuit Protection Type
Fuse
UL 94 Flammability Rating
V-0
Standards
Aex UL 60079 E185892 (AEx eb IIC resp. Ex eb IIC), ATEX EN IEC 60079-0 PTB 20 ATEX 1007U (II 3 G Ex ec IIC Gc), ATEX-Attestation of Conformity, CCC 2020312313000288 (Ex ec IIC Gc), CE, DEKRA EN 60947 71-147887, IEC 60079 IECEx PTB 20.0013U (Ex ec IIC Gc), RoHS Compliant, UKCA, UL 1059 UL-CA-L45172-6189178-11508102-1
Minimum Operating Temperature
-60 Degrees C
Current
6 A

Description

Terminal Block, Circuit Protection Type Fuse, Connection Type Push-In, Current 6 A, For Minimum Wire Size 22 AWG, For Maximum Wire Size 12 AWG, Housing Color Gray, Maximum Voltage 250 V, Mounting Type DIN Rail, Number of Poles 1, Number of Tiers 1, For Conductor Material Copper, For Conductor Type Solid, Stranded, For Fuse Diameter 5 mm, For Fuse Length 20 mm, Overall Depth 0.24 in, Overall Length 2.6 in
