Shop WAGO

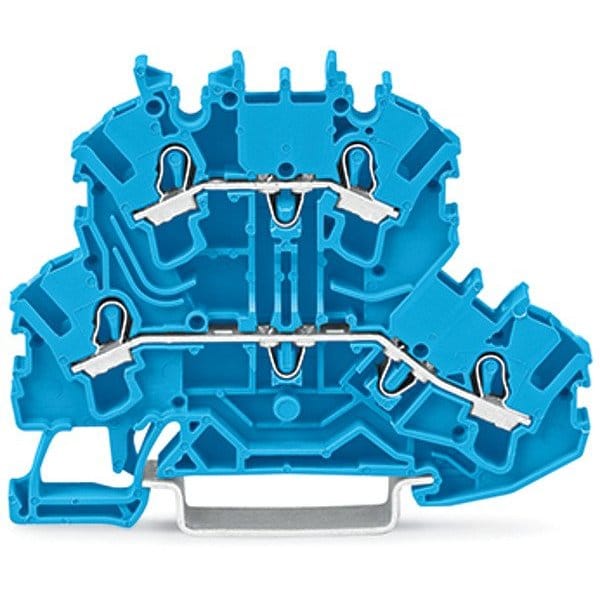

Terminal Block, 2.74" L, 500V, Blue

  • Mfr # 2002-2204

  • Zoro # G122935638

product price:
$
4.49
/ea

Key Features

Number of Poles
2
Housing Color
Blue
6-Pole Jumper Compatibility
2002-406, 2002-406/000-005, 2002-406/000-006, 2002-406/020-000, 2002-476, 2002-481/011-000
Housing Material
Polyamide 66
Number of Connections
4
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2002-2204
Zoro #
G122935638
UPC #
-
Country of Origin
Germany

Dimensions

Overall Depth
0.2 in
For Channel Rail Size
35 mm
For Minimum Wire Size
22 AWG
For Maximum Wire Size
12 AWG
Wire Rope Length
2.74 in
Strip Length
15/32 in
Overall Length
2.74 in

Details

Number of Poles
2
Item
Terminal Block
Housing Color
Blue
6-Pole Jumper Compatibility
2002-406, 2002-406/000-005, 2002-406/000-006, 2002-406/020-000, 2002-476, 2002-481/011-000
Housing Material
Polyamide 66
Number of Connections
4
For Conductor Type
Solid, Stranded
Series
2002
Terminal Block Type
Pass-Through
Current
24 A
Minimum Operating Temperature
-60 Degrees C
Circuit Protection Type
None
Maximum Voltage
500 V
Connection Type
Push-In
UL 94 Flammability Rating
V-0
Number of Tiers
2
2-Pole Jumper Compatibility
2002-400, 2002-402, 2002-402/000-005, 2002-402/000-006, 2002-423, 2002-423/000-005, 2002-423/000-006, 2002-424, 2002-424/000-005, 2002-424/000-006, 2002-433, 2002-434, 2002-435, 2002-436, 2002-437, 2002-438, 2002-439, 2002-440, 2002-472, 2002-473/011-000
Special Features
4 Jumper Slots, Front-Entry Wiring
For Conductor Material
Copper
Standards
ABS EN 60947 24-0152298-PDA, AEx UL 60079 E185892 (AEx eb IIC resp. Ex eb IIC), ATEX EN 60079 PTB 03 ATEX 1162 U (II2G Ex eb IIC Gb, IM2 Ex eb Imb), ATEX-Attestation of Conformity, CCA EN 60947 NTR NL-8054, CCC GB/T 3836.3 2020312313000238 (Ex eb IIC Gb, Ex eb I Mb), CE, CSA C22.2 No. 158 154112, DEKRA EN 60947 71-149763, DNV GL TAE00001V2, IEC 60079, KEMA/KEUR EN 60947 71-124163, PRS TE/1094/880590/23, RoHS Compliant, TUV 12.1307 U, UKCA, UL 1059, UL File No. E45172

Description

Terminal Block, Circuit Protection Type None, Connection Type Push-In, Current 24 A, For Minimum Wire Size 22 AWG, For Maximum Wire Size 12 AWG, Housing Color Blue, Maximum Voltage 500 V, Mounting Type DIN Rail, Number of Poles 2, Number of Tiers 2, For Conductor Material Copper, For Conductor Type Solid, Stranded, Overall Depth 0.2 in, Overall Length 2.74 in
