Shop WAGO

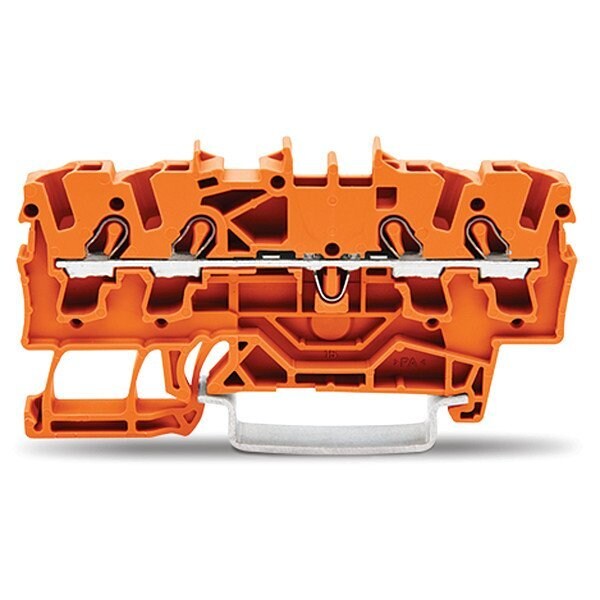

Terminal Block, 2.75" L, 1.55" W, 800V

  • Mfr # 2002-1402

  • Zoro # G722935809

product price:  $2.95
/ea

Key Features

For Channel Rail Size
35 mm
Number of Poles
1
Connection Type
Push-In
For Minimum Wire Size
22 AWG
2-Pole Jumper Compatibility
2002-400, 2002-402, 2002-402/000-005, 2002-402/000-006, 2002-423, 2002-423/000-005, 2002-423/000-006, 2002-424, 2002-424/000-005, 2002-424/000-006, 2002-433, 2002-434, 2002-435, 2002-436, 2002-437, 2002-438, 2002-439, 2002-440, 2002-472, 2002-473/011-000
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2002-1402
Zoro #
G722935809
UPC #
-
Country of Origin
Germany

Dimensions

For Channel Rail Size
35 mm
For Minimum Wire Size
22 AWG
For Maximum Wire Size
12 AWG
Wire Rope Length
2.75 in
Strip Length
15/32 in
Overall Width
1.55 in
Overall Depth
0.2 in
Overall Length
2.75 in

Details

Number of Poles
1
Connection Type
Push-In
2-Pole Jumper Compatibility
2002-400, 2002-402, 2002-402/000-005, 2002-402/000-006, 2002-423, 2002-423/000-005, 2002-423/000-006, 2002-424, 2002-424/000-005, 2002-424/000-006, 2002-433, 2002-434, 2002-435, 2002-436, 2002-437, 2002-438, 2002-439, 2002-440, 2002-472, 2002-473/011-000
Special Features
2 Jumper Slots, Front-Entry Wiring
Maximum Voltage
800 V
Circuit Protection Type
None
For Conductor Type
Solid, Stranded
Number of Tiers
1
Housing Material
Polyamide 66
For Conductor Material
Copper
Housing Color
Orange
Series
2002
Current
24 A
6-Pole Jumper Compatibility
2002-406, 2002-406/000-005, 2002-406/000-006, 2002-406/020-000, 2002-476, 2002-481/011-000
Standards
ABS EN 60947 24-0152298-PDA, AEx UL 60079 E185892 (AEx eb IIC resp. Ex eb IIC), ATEX EN 60079 PTB 03 ATEX 1162 U (II2G Ex eb IIC Gb, IM2 Ex eb Imb), ATEX-Attestation of Conformity, CCA EN 60947 NTR NL-8054, CCC GB/T 3836.3 2020312313000238 (Ex eb IIC Gb, Ex eb I Mb), CE, CSA C22.2 No. 158 154112, DEKRA EN 60947 71-149763, DNV GL TAE00001V2, IEC 60079, KEMA/KEUR EN 60947 71-124163, PRS TE/1094/880590/23, RoHS Compliant, TUV 12.1307 U, UKCA, UL 1059, UL File No. E45172
Terminal Block Type
Pass-Through
UL 94 Flammability Rating
V-0
Minimum Operating Temperature
-60 Degrees C
Number of Connections
4
Item
Terminal Block

Description

Terminal Block, Circuit Protection Type None, Connection Type Push-In, Current 24 A, For Minimum Wire Size 22 AWG, For Maximum Wire Size 12 AWG, Housing Color Orange, Maximum Voltage 800 V, Mounting Type DIN Rail, Number of Poles 1, Number of Tiers 1, For Conductor Material Copper, For Conductor Type Solid, Stranded, Overall Depth 0.2 in, Overall Length 2.75 in, Overall Width 1.55 in
