Shop WAGO

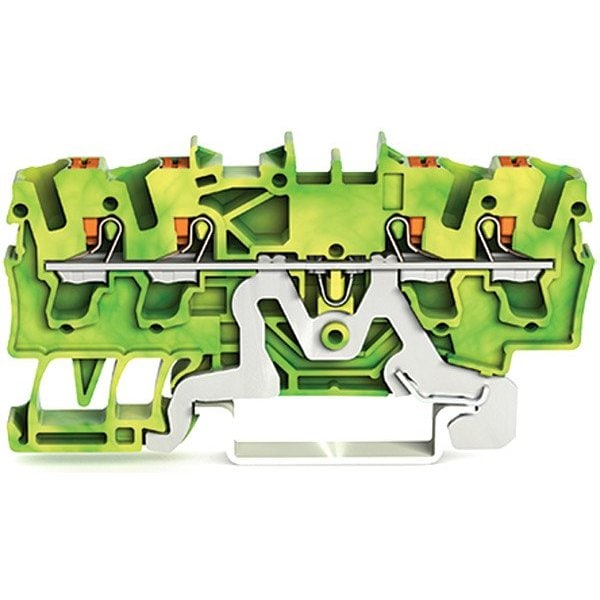

Terminal Block, 2.75" L, Green; Yellow

  • Mfr # 2202-1407

  • Zoro # G622935831

product price:
$
8.25
/ea

Key Features

For Minimum Wire Size
22 AWG
Housing Material
Polyamide 66
6-Pole Jumper Compatibility
2002-406, 2002-406/000-005, 2002-406/000-006, 2002-406/020-000, 2002-476, 2002-481/011-000
2-Pole Jumper Compatibility
2002-400, 2002-402, 2002-402/000-005, 2002-402/000-006, 2002-423, 2002-423/000-005, 2002-423/000-006, 2002-424, 2002-424/000-005, 2002-424/000-006, 2002-433, 2002-434, 2002-435, 2002-436, 2002-437, 2002-438, 2002-439, 2002-440, 2002-472, 2002-473/011-000
Overall Depth
0.2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2202-1407
Zoro #
G622935831
UPC #
-
Country of Origin
Germany

Dimensions

For Minimum Wire Size
22 AWG
Overall Depth
0.2 in
For Maximum Wire Size
12 AWG
For Channel Rail Size
35 mm
Strip Length
15/32 in
Wire Rope Length
2.75 in
Overall Length
2.75 in

Details

Housing Material
Polyamide 66
6-Pole Jumper Compatibility
2002-406, 2002-406/000-005, 2002-406/000-006, 2002-406/020-000, 2002-476, 2002-481/011-000
2-Pole Jumper Compatibility
2002-400, 2002-402, 2002-402/000-005, 2002-402/000-006, 2002-423, 2002-423/000-005, 2002-423/000-006, 2002-424, 2002-424/000-005, 2002-424/000-006, 2002-433, 2002-434, 2002-435, 2002-436, 2002-437, 2002-438, 2002-439, 2002-440, 2002-472, 2002-473/011-000
Item
Terminal Block
UL 94 Flammability Rating
V-0
For Conductor Material
Copper
Standards
ABS 24-0095985-PDA, Aex UL 60079 E185892 (AEx eb IIC resp. Ex eb IIC), ATEX EN IEC 60079-0 PTB 18 ATEX 1005 U (II 2 G Ex eb IIC Gb bzw. I M 2 Ex eb I Mb), ATEX-Attestation of Conformity, BV IEC 60947 58186/A0 BV, CCA EN 60947 NTR NL 7950, CCC GB/T 3836.3 2020312313000169, CE, CSA C22.2 70173745, DEKRA EN 60947 71-147887, DNV GL TAE00003JT, IEC 60079 IECEx PTB 18.0012U (Ex eb IIC Gb and Ex eb I Mb), KEMA/KEUR EN 60947 71-124827, LR 19/20050, RoHS Compliant, UKCA, UL 1059 UL-CA-L45172-6189178-11508102-1
For Conductor Type
Solid, Stranded
Minimum Operating Temperature
-60 Degrees C
Circuit Protection Type
None
Special Features
2 Jumper Slots, Front-Entry Wiring
Number of Tiers
1
Number of Poles
1
Number of Connections
4
Housing Color
Green, Yellow
Series
2202
Terminal Block Type
Grounding
Connection Type
Push-In

Description

Terminal Block, Circuit Protection Type None, Connection Type Push-In, Current Not Applicable, For Minimum Wire Size 22 AWG, For Maximum Wire Size 12 AWG, Housing Color Green, Yellow, Maximum Voltage Not Applicable, Mounting Type DIN Rail, Number of Poles 1, Number of Tiers 1, For Conductor Material Copper, For Conductor Type Solid, Stranded, Overall Depth 0.2 in, Overall Length 2.75 in
