Shop WAGO

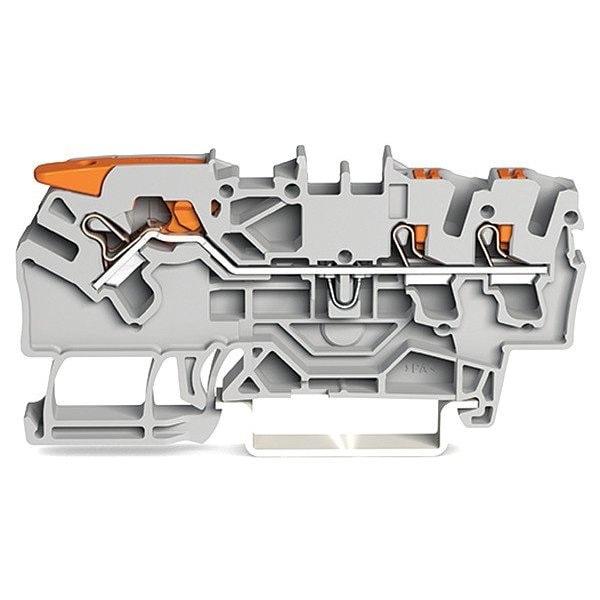

Terminal Block, 2.84" L, 1.55" W, 800V, Gray

  • Mfr # 2102-5301

  • Zoro # G222935446

product price:  $2.79
/ea

Key Features

Connection Type
Push-In
Number of Connections
3
2-Pole Jumper Compatibility
2002-400, 2002-402, 2002-402/000-005, 2002-402/000-006, 2002-423, 2002-423/000-005, 2002-423/000-006, 2002-424, 2002-424/000-005, 2002-424/000-006, 2002-433, 2002-434, 2002-435, 2002-436, 2002-437, 2002-438, 2002-439, 2002-440, 2002-472, 2002-473/011-000
For Conductor Material
Copper
Wire Rope Length
2.84 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2102-5301
Zoro #
G222935446
UPC #
-
Country of Origin
Germany

Dimensions

Wire Rope Length
2.84 in
For Maximum Wire Size
12 AWG
Overall Depth
0.2 in
For Channel Rail Size
35 mm
Strip Length
15/32 in
Overall Width
1.55 in
For Minimum Wire Size
22 AWG
Overall Length
2.84 in

Details

Item
Terminal Block
Connection Type
Push-In
Number of Connections
3
2-Pole Jumper Compatibility
2002-400, 2002-402, 2002-402/000-005, 2002-402/000-006, 2002-423, 2002-423/000-005, 2002-423/000-006, 2002-424, 2002-424/000-005, 2002-424/000-006, 2002-433, 2002-434, 2002-435, 2002-436, 2002-437, 2002-438, 2002-439, 2002-440, 2002-472, 2002-473/011-000
For Conductor Material
Copper
Current
24 A
Terminal Block Type
Pass-Through
Housing Material
Polyamide 66
Circuit Protection Type
None
Standards
ABS 24-0095985-PDA, AEX UL 60079 20181105-E185892 (AEx eb IIC resp. Ex eb IIC), ATEX EN 60079-0 PTB 18 ATEX 1010 U (II 2 G Ex eb IIC Gb bzw. I M 2 Ex eb I Mb), ATEX-Attestation of Conformity, BV IEC 60947 58186/A0 BV DNV GLTAE00003JT, CCA EN 60947 NTR NL 7670, CCC GB/T 3836.3 2020312313000163 (Ex eb IIC Gb, Ex eb I Mb), CE, CSA C22.2 70175030, IEC 60079-0 IECEx PTB 18.0017U (Ex eb IIC Gb resp. Ex eb I Mb), KEMA/KEUR EN 60947 71-102882, LR 19/20050, PRS TE71097/880590/23, RoHS Compliant, TUV 19.0818 U, UKCA, UL 1059, UL File No. E45172
For Conductor Type
Solid, Stranded
UL 94 Flammability Rating
V-0
Number of Poles
1
Maximum Voltage
800 V
Special Features
2 Jumper Slots, Front-Entry Wiring
Housing Color
Gray
Number of Tiers
1
Series
2102
6-Pole Jumper Compatibility
2002-406, 2002-406/000-005, 2002-406/000-006, 2002-406/020-000, 2002-476, 2002-481/011-000
Minimum Operating Temperature
-60 Degrees C

Description

Terminal Block, Circuit Protection Type None, Connection Type Push-In, Current 24 A, For Minimum Wire Size 22 AWG, For Maximum Wire Size 12 AWG, Housing Color Gray, Maximum Voltage 800 V, Mounting Type DIN Rail, Number of Poles 1, Number of Tiers 1, For Conductor Material Copper, For Conductor Type Solid, Stranded, Overall Depth 0.2 in, Overall Length 2.84 in, Overall Width 1.55 in
