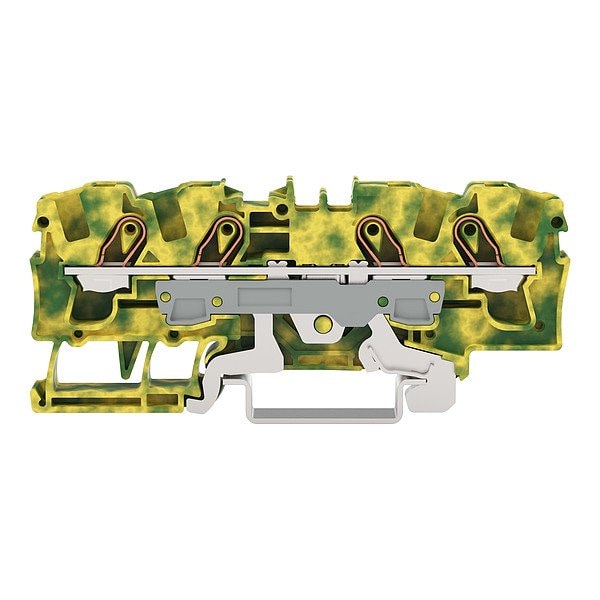

Terminal Block, 3.51" L, 1.55" W
- Mfr # 2006-1407
- Zoro # G822935495
product price:Â
$
13.15
/ea
Key Features
2-Pole Jumper Compatibility
2006-402, 2006-433, 2006-434, 2006-435
Wire Rope Length
3.51 in
Circuit Protection Type
None
Standards
CCC GB/T 3836.3 2020312313000231, CE, RoHS Compliant
Minimum Operating Temperature
-60 Degrees C
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 2006-1407
- Zoro #
- G822935495
- UPC #
- -
- Country of Origin
- Germany
- 2-Pole Jumper Compatibility
- 2006-402, 2006-433, 2006-434, 2006-435
- Circuit Protection Type
- None
- Standards
- CCC GB/T 3836.3 2020312313000231, CE, RoHS Compliant
- Minimum Operating Temperature
- -60 Degrees C
- Number of Connections
- 4
- For Conductor Type
- Solid, Stranded
- Number of Tiers
- 1
- Series
- 2006
- Item
- Terminal Block
- Special Features
- 2 Jumper Slots, Front-Entry Wiring
- For Conductor Material
- Copper
- Terminal Block Type
- Grounding
- Number of Poles
- 1
- Housing Material
- Polyamide 66
- Housing Color
- Green, Yellow
- UL 94 Flammability Rating
- V-0
- Connection Type
- Push-In
Description
Terminal Block, Circuit Protection Type None, Connection Type Push-In, Current Not Applicable, For Minimum Wire Size 20 AWG, For Maximum Wire Size 8 AWG, Housing Color Green, Yellow, Maximum Voltage Not Applicable, Mounting Type DIN Rail, Number of Poles 1, Number of Tiers 1, For Conductor Material Copper, For Conductor Type Solid, Stranded, Overall Depth 0.29 in, Overall Length 3.51 in, Overall Width 1.55 in, Standards CCC GB/T 3836.3 2020312313000231, CE, RoHS Compliant
