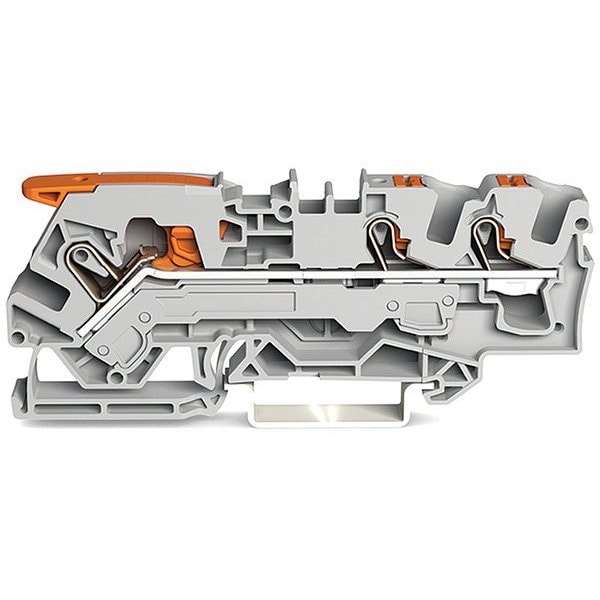

Terminal Block, 3.57" L, 1.55" W, 800V, Gray

Mfr # 2106-5301
Zoro # G822935778

Key Features

Standards

ABS 24-0095985-PDA, ATEX-Attestation of Conformity, BV IEC 60947 58186/A0 BV, CCA EN 60947 NTR NL 7678, CCC GB/T 3836.3 2020312313000164 (Ex eb IIC Gb, Ex eb I Mb), CSA C22.2 70175103, IEC 60079 TUV 19.0823 U, IEC 60079-0 IECEx PTB 18.0018U (Ex eb IIC Gb resp. Ex eb I Mb), KEMA/KEUR EN 60947 71-103226, LR 19/20050, PRS TE71097/880590/23, RoHS Compliant, UKCA:CE, UL 1059, UL 60079 E185892 (AEx eb IIC resp. Ex eb IIC)ATEX EN 60079-0 PTB 18 ATEX 1011 U (II 2 G Ex eb IIC Gb bzw. I M 2 Ex eb I Mb), UL File No. E45172

Strip Length

19/32 in

Series

2106

2-Pole Jumper Compatibility

2006-402, 2006-433, 2006-434, 2006-435

UL 94 Flammability Rating

V-0

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 2106-5301
Zoro #: G822935778
UPC #: -
Country of Origin: Germany

Dimensions

Strip Length: 19/32 in
Overall Width: 1.55 in
Overall Depth: 0.29 in
For Channel Rail Size: 35 mm
For Maximum Wire Size: 8 AWG
For Minimum Wire Size: 20 AWG
Wire Rope Length: 3.57 in
Overall Length: 3.57 in
Length: 3.57 in

Details

Standards: ABS 24-0095985-PDA, ATEX-Attestation of Conformity, BV IEC 60947 58186/A0 BV, CCA EN 60947 NTR NL 7678, CCC GB/T 3836.3 2020312313000164 (Ex eb IIC Gb, Ex eb I Mb), CSA C22.2 70175103, IEC 60079 TUV 19.0823 U, IEC 60079-0 IECEx PTB 18.0018U (Ex eb IIC Gb resp. Ex eb I Mb), KEMA/KEUR EN 60947 71-103226, LR 19/20050, PRS TE71097/880590/23, RoHS Compliant, UKCA:CE, UL 1059, UL 60079 E185892 (AEx eb IIC resp. Ex eb IIC)ATEX EN 60079-0 PTB 18 ATEX 1011 U (II 2 G Ex eb IIC Gb bzw. I M 2 Ex eb I Mb), UL File No. E45172
Series: 2106
2-Pole Jumper Compatibility: 2006-402, 2006-433, 2006-434, 2006-435
UL 94 Flammability Rating: V-0
For Conductor Material: Copper
Number of Connections: 3
Special Features: 2 Jumper Slots, Front-Entry Wiring
Item: Terminal Block
Minimum Operating Temperature: -60 Degrees C
Connection Type: Push-In
Number of Tiers: 1
Housing Material: Polyamide 66
Housing Color: Gray
Terminal Block Type: Pass-Through
For Conductor Type: Solid, Stranded
Number of Poles: 1
Maximum Voltage: 800 V
Circuit Protection Type: None
Current: 41 A

Description

Terminal Block, Circuit Protection Type None, Connection Type Push-In, Current 41 A, For Minimum Wire Size 20 AWG, For Maximum Wire Size 8 AWG, Housing Color Gray, Maximum Voltage 800 V, Mounting Type DIN Rail, Number of Poles 1, Number of Tiers 1, For Conductor Material Copper, For Conductor Type Solid, Stranded, Overall Depth 0.29 in, Overall Length 3.57 in, Overall Width 1.55 in
