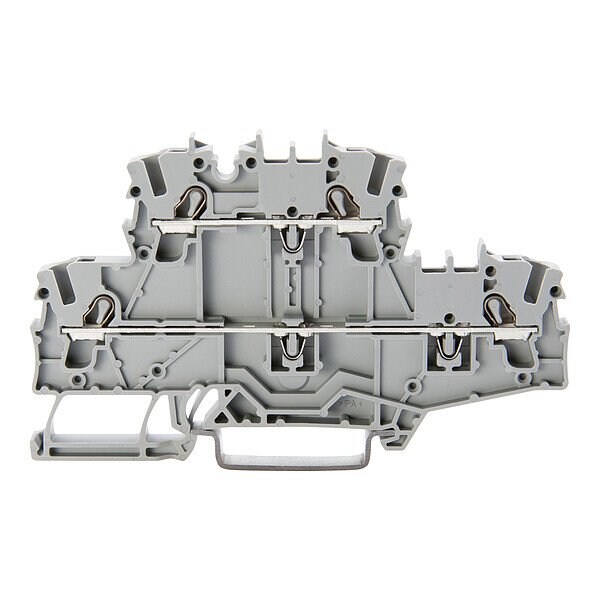

Terminal Block, 3.64" L, 800V, Gray

  • Mfr # 2002-2701

  • Zoro # G022935790

product price:  $4.25
/ea

Key Features

Strip Length
15/32 in
For Maximum Wire Size
12 AWG
Circuit Protection Type
None
For Channel Rail Size
35 mm
Wire Rope Length
3.64 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2002-2701
Zoro #
G022935790
UPC #
-
Country of Origin
Germany

Dimensions

Strip Length
15/32 in
For Maximum Wire Size
12 AWG
For Channel Rail Size
35 mm
Wire Rope Length
3.64 in
Overall Depth
0.2 in
For Minimum Wire Size
22 AWG
Overall Length
3.64 in

Details

Item
Terminal Block
Circuit Protection Type
None
For Conductor Material
Copper
Minimum Operating Temperature
-60 Degrees C
6-Pole Jumper Compatibility
2002-406, 2002-406/000-005, 2002-406/000-006, 2002-406/020-000, 2002-476, 2002-481/011-000
Housing Material
Polyamide 66
Series
2002
2-Pole Jumper Compatibility
2002-400, 2002-402, 2002-402/000-005, 2002-402/000-006, 2002-423, 2002-423/000-005, 2002-423/000-006, 2002-424, 2002-424/000-005, 2002-424/000-006, 2002-433, 2002-434, 2002-435, 2002-436, 2002-437, 2002-438, 2002-439, 2002-440, 2002-472, 2002-473/011-000
Maximum Voltage
800 V
Number of Poles
2
UL 94 Flammability Rating
V-0
For Conductor Type
Solid, Stranded
Connection Type
Push-In
Number of Connections
4
Housing Color
Gray
Number of Tiers
2
Terminal Block Type
Pass-Through
Current
24 A
Standards
AEx UL 60079 E185892 (AEx eb IIC resp. Ex eb IIC), ATEX EN 60079 PTB 03 ATEX 1162 U (II2G Ex eb IIC Gb, IM2 Ex eb Imb), CCA EN 60947 NTR NL-8054, CCC GB/T 3836.3 2020312313000238 (Ex eb IIC Gb, Ex eb I Mb), CE, CSA C22.2 No. 158 154112, DEKRA EN 60947 71-149763, IEC 60079 TUV 12.1307 U, KEMA/KEUR EN 60947 71-124163, RoHS Compliant, UKCA, UL 1059, UL File No. E45172
Special Features
4 Jumper Slots, Front-Entry Wiring

Description

Terminal Block, Circuit Protection Type None, Connection Type Push-In, Current 24 A, For Minimum Wire Size 22 AWG, For Maximum Wire Size 12 AWG, Housing Color Gray, Maximum Voltage 800 V, Mounting Type DIN Rail, Number of Poles 2, Number of Tiers 2, For Conductor Material Copper, For Conductor Type Solid, Stranded, Overall Depth 0.2 in, Overall Length 3.64 in
