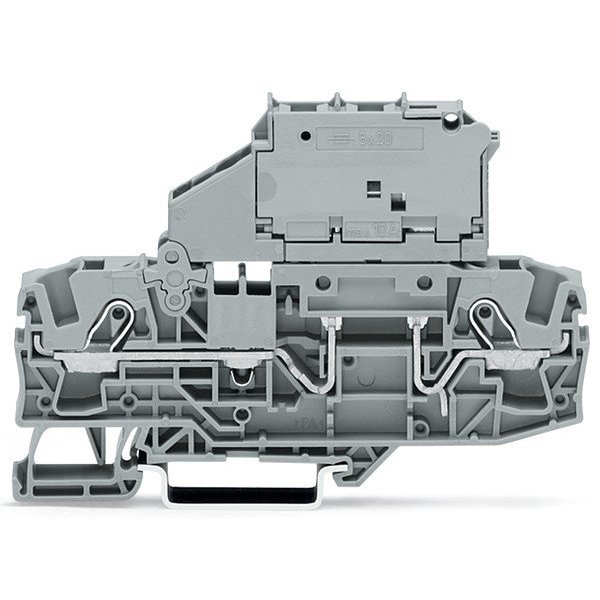

Terminal Block, 3.79" L, 800V, Gray
Mfr # 2006-1611
Zoro # G922935449
product price:Â
$
11.59
/ea
Zoro's best price: not eligible for any other offers or promotions
Key Features
Number of Tiers
1
Circuit Protection Type
Fuse
For Conductor Material
Copper
Number of Poles
1
Housing Material
Polyamide 66
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 2006-1611
- Zoro #
- G922935449
- UPC #
- -
- Country of Origin
- China
- Number of Tiers
- 1
- Circuit Protection Type
- Fuse
- For Conductor Material
- Copper
- Number of Poles
- 1
- Housing Material
- Polyamide 66
- Minimum Operating Temperature
- -60 Degrees C
- For Conductor Type
- Solid, Stranded
- 2-Pole Jumper Compatibility
- 2006-402, 2006-433, 2006-434, 2006-435
- Connection Type
- Push-In
- Standards
- ABS EN 60947 24-0152298-PDA, CCA EN 60947 NTR NL 7925/1, CCA IEC 60947 71-122840 REV.1, CE, CSA C22.2 No. 158 1543858, DNV GL TAE00001V2, EN 60947 LR23325966TA, PRS TE/1094/880590/23, RoHS Compliant, UKCA, UL 1059, UL File No. E45172
- Maximum Voltage
- 800 V
- Special Features
- 2 Jumper Slots, Front-Entry Wiring
- Number of Connections
- 2
- Current
- 10 A
- Item
- Terminal Block
- UL 94 Flammability Rating
- V-0
- Series
- 2006
- Terminal Block Type
- Disconnect
- Housing Color
- Gray
Description
Terminal Block, Circuit Protection Type Fuse, Connection Type Push-In, Current 10 A, For Minimum Wire Size 20 AWG, For Maximum Wire Size 8 AWG, Housing Color Gray, Maximum Voltage 800 V, Mounting Type DIN Rail, Number of Poles 1, Number of Tiers 1, For Conductor Material Copper, For Conductor Type Solid, Stranded, For Fuse Diameter 5 mm, For Fuse Length 20 mm, Overall Depth 0.29 in, Overall Length 3.79 in
