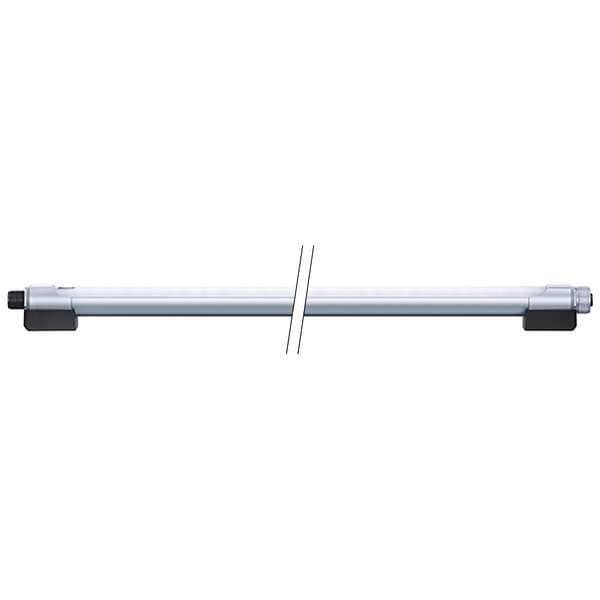

Waldmann Machine Light, IP54, LED, 2520lm 114047000-00801394 - main

Machine Light, IP54, LED, 2520lm

  • Mfr # 114047000-00801394

  • Zoro # G903529049

product price: $332.99
/ea
Free Shipping & Returns

Key Features

Machine Tool Light Type
Linear Machine Tool Light
Lighting Technology
LED
Voltage
22-26VDC
Watts
24
Lumens
2520 lm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
114047000-00801394
Zoro #
G903529049
UPC #
-
Country of Origin
Germany

Dimensions

Cord Length
16.4 ft
Overall Length
46.3 in
Outside Dia.
25 mm
Overall Height
1 in
Overall Width
1 in
Manufacturer Warranty Length
5 yr

Details

Item
Machine Light
Machine Tool Light Type
Linear Machine Tool Light
Lighting Technology
LED
Voltage
22-26VDC
Watts
24
Lumens
2520 lm
Includes
Bracket
Cord Type
Plug M12-A-5 Pin Type A
Tube Material
Anodised Aluminum
Average Life
60,000 hr
Standards
ETL, cETL
Special Features
External Operation, Switchable
Gauge/Conductor
5 pin A Coded,5x0.34 mm (2)
Ballast
No Ballast
Includes Bulb
Yes
Lamp Life
60,000 hr
Machine Light Type
Linear
Electrical Connection Type
M12 Connector
Dimmable
Yes
Switch Type
No Switch
Maximum Brightness
2,520 lm
Adjustability
Adjustable +/- 60 Degrees
Ballast Type
No Ballast
Operating Voltage
22 to 26V DC
Housing Material Finish
Anodized
IP Rating
IP54
Hazardous Location Specification
Not Rated
Plug Type
5 Pin
Mount Type
Bracket
Resistance Properties
Dust Ignition Proof, Water Resistant
Wattage
24 W
Color Rendering Index
80
Color Temperature
5000K
Housing Material
Aluminum; Plastic
Lens Material
Acrylic

Description

Machine Light, IP Rating IP54, Lighting Technology LED, Maximum Brightness 2,520 lm, Mount Type Bracket, Operating Voltage 22 to 26V DC, Overall Length 46.3 in, Power Cord Length Not Applicable, Wattage 24 W, Resistance Properties Dust Ignition Proof, Water Resistant, Adjustability Adjustable +/- 60 Degrees , Color Rendering Index 80, Color Temperature 5000K, Electrical Connection Type M12 Connector, Hazardous Location Specification Not Rated, Includes Bulb Yes, Machine Light Type Linear
