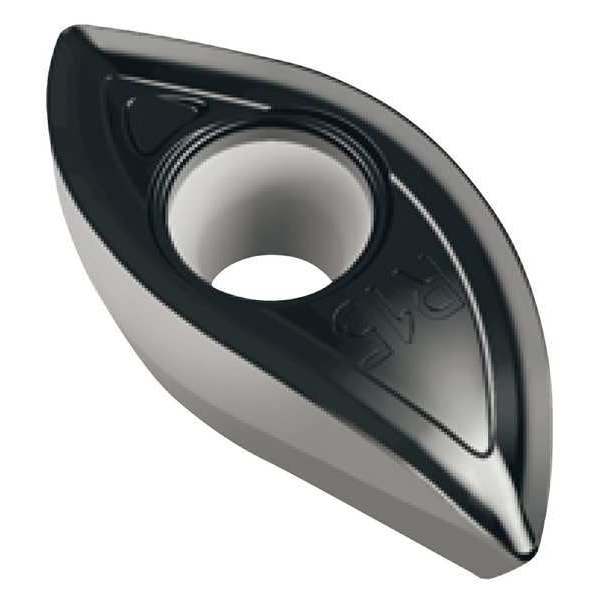

Walter Ballnose XDMT Carbide XDMT2506160R-F55 WKP35S - main

Ballnose XDMT Carbide

  • Mfr # XDMT2506160R-F55 WKP35S

  • Zoro # G8208155

product price: $54.89
/ea
Sold in multiples of 10 for $548.90

Key Features

Insert Style
XDMT
Insert Shape
Ballnose
Insert Size
2506160
Insert Material
Carbide
Corner Radius
0.80mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XDMT2506160R-F55 WKP35S
Zoro #
G8208155
UPC #
-
Country of Origin
Germany

Dimensions

Insert Size
2506160
Corner Radius
0.80mm
Nose Radius
0.630"
Insert Thickness
0.236"
Width
14.40mm
Thickness
0.236 in
Cutting Edge Length
25.54mm

Details

Item
Ball Nose Milling Insert
Insert Style
XDMT
Insert Shape
Ballnose
Insert Material
Carbide
Super Alloy (S) Compatibility
No
Stainless (M) Compatibility
No
No. of Edges
2
Mounting Style
Screw Held
Hardened (H) Compatibility
No
ANSI Number
XDMT2506160R-F55 WKP35S
Inscribed Circle
0.984 in
Grade
WKP35S
Cutting Direction
Right Hand
Cast Iron (K) Compatibility
Yes
Workpiece Compatibility
Cast Iron (K), Steel (P)
Insert Application
Medium
Coating
CVD
Chip-Breaker
Yes
Rake
Positive
For Use With
Copy Milling Cutter
Non Ferrous (N) Compatibility
No
Steel (P) Compatibility
Yes
Number of Cutting Edges
2
Finish - Machining
TiCN+Al2O3+TiCN
Primary Material Application ISO Code
K, P
Manufacturer Grade
WKP35S
Cutting Application
Medium
Primary Material Application
Cast Iron, Steel
Chip-Breaker Style
16 Degrees Chipbreaker Groove
ISO Number
XDMT2506160R-F55
Measurement System
Metric
Shape
Ball Nose
Coating Process
CVD
ANSI Code
XDMT2506160R-F55
Hole Type
Countersink Hole
Chip-Breaker Code
F55
Clearance Angle
15 Degrees
Material - Machining
Carbide

Description

Ball Nose Milling Insert, Inscribed Circle 0.984 in, Positive
