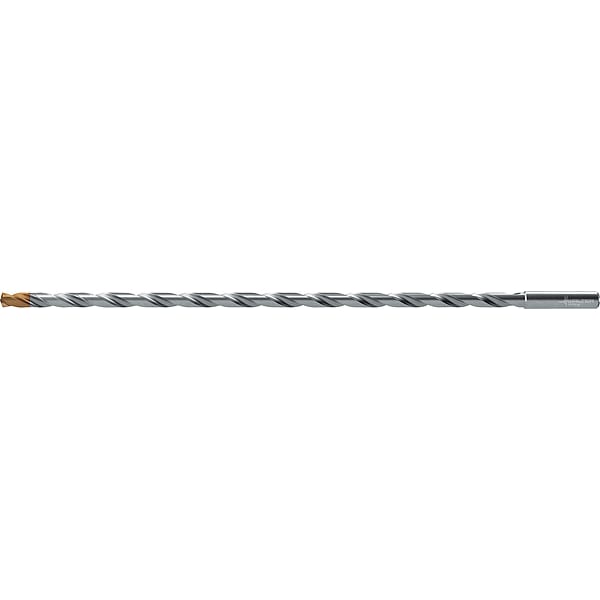

Walter Drill Bit, DC160-30-04.000A1-WJ30EU DC160-30-04.000A1-WJ30EU - main

Drill Bit, DC160-30-04.000A1-WJ30EU

  • Mfr # DC160-30-04.000A1-WJ30EU

  • Zoro # G400422461

product price:  $597.99
/ea
Free Shipping & Returns

Key Features

Drill Bit Size
4.00 mm
Overall Length
166.00 mm
Shank Dia.
4 mm
Shank Type
Straight
Flute Length
133.00 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DC160-30-04.000A1-WJ30EU
Zoro #
G400422461
UPC #
04031132430133
Country of Origin
France

Dimensions

Drill Bit Size
4.00 mm
Overall Length
166.00 mm
Shank Dia.
4 mm
Flute Length
133.00 mm
Drill Length Class
Extended Length
Depth:Dia. Ratio
30xD
Shank Length
28.00 mm
Drill Diameter Tolerance
H7
Maximum Drilling Depth
127 mm
Drill Point Length
0.73 mm

Details

Item
Jobber Length Drill Bit
Shank Type
Straight
Number of Flutes
2
Drill Bit Material
Carbide
Cutting Direction
Right Hand
Finish
TiSiAlCrN/AlTiN
Drill Bit Point Angle
140 Degrees
Standards
TP-NORM 66X
Sheeter Drill
No
Web Construction
Tapered
Drill Bit Point Type
Split Point
Helix Angle
30 Degrees
Primary Material Application ISO Code
K, N, P, S
List Number
DC160-30-A1
Measurement System
Metric
Secondary Material Application ISO Code
H, O, P
Primary Material Application
All Materials
Coolant Through
Coolant Through
Secondary Material Application
Stainless Steel
Number of Coolant Holes
2
Grade
WJ30EU
Flute Type
Spiral
Decimal Equivalent
0.1575
Helix Angle - Maximum
30 Degrees

Description

Jobber Length Drill Bit, Drill Bit Size 4 mm, Drill Bit Point Angle 140 Degrees , Carbide, TiSiAlCrN/AlTiN Tip, Decimal Equivalent 0.1575, Metric, Drill Bit Point Type Split Point, Coolant Through, Number of Coolant Holes 2
