  11. Extra Long Drill, 6.10mm, Carbide, A7595TTP-6.1
Walter Extra Long Drill, 6.10mm, Carbide, A7595TTP-6.1 A7595TTP-6.1 - main

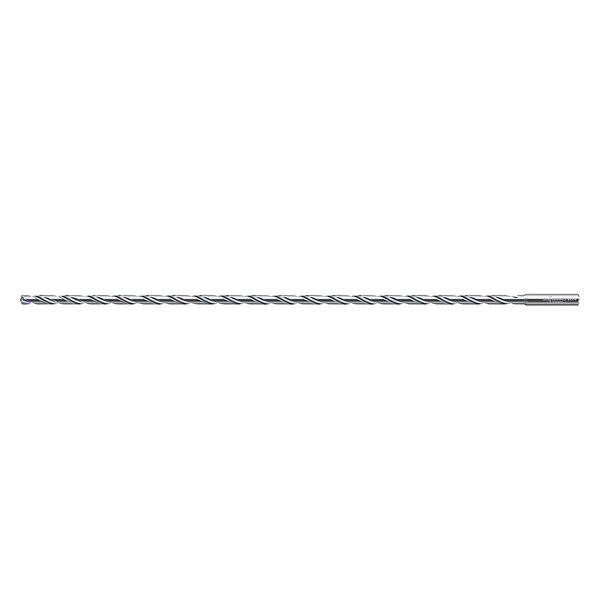

Extra Long Drill, 6.10mm, Carbide, A7595TTP-6.1

  • Mfr # A7595TTP-6.1

  • Zoro # G9378232

product price: $1,332.99
/ea
Free Shipping & Returns

Key Features

Drill Bit Size
6.1 mm
Overall Length
389 mm
Drill Bit Point Angle
140 Degrees
Material - Machining
Carbide
Finish - Machining
TiNAl
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
A7595TTP-6.1
Zoro #
G9378232
UPC #
-
Country of Origin
France

Dimensions

Drill Bit Size
6.1 mm
Overall Length
389 mm
Dimension Type
Metric
Size
6.10mm
Drill Bit Dimension Type
Metric
Depth:Dia. Ratio
50xD
Flute Length
347 mm
Shank Dia.
8 mm
Depth x Dia. Ratio
50xD
Drill Diameter Tolerance
E7
Drill Length Class
Extended-Length
Drill Point Length
1.42mm
Maximum Drilling Depth
347.00 mm
Shank Length
36 mm

Details

Item
Extra Long Drill Bit
Drill Bit Point Angle
140 Degrees
Material - Machining
Carbide
Finish - Machining
TiNAl
Number of Flutes
2
Shank Type - Machining
Straight
Decimal Equivalent
0.2402
Drill Bit Material
Solid Carbide
Drill Bit Grouping
Drill Bit
Grade
TinAl Top Point Coating
Material
Solid Carbide
Drill Bit Finish
TiNAl
Shank Type
Straight
Flute Type
Spiral
Application
Deep Hole Drilling In All ISO Materials
Coolant Through
Yes
Cutting Direction
Right Hand
List Number
A7595TTP
Coolant Fed
Coolant Through
Series
X.treme D50
Standards
TP-NORM 75
Drill Bit Point Type
Conventional Point
Measurement System
Metric
Sheeter Drill
No
Secondary Material Application ISO Code
M
Secondary Material Application
Stainless Steel
Primary Material Application ISO Code
K, N, P
Primary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Steel
Number of Coolant Holes
2

Description

Extra Long Drill Bit, Drill Bit Size 6.1 mm, Drill Bit Point Angle 140 Degrees , Conventional Point, Carbide, TiNAl, Maximum Drilling Depth 347.00 mm, Metric, 50xD
