Shop WALTER

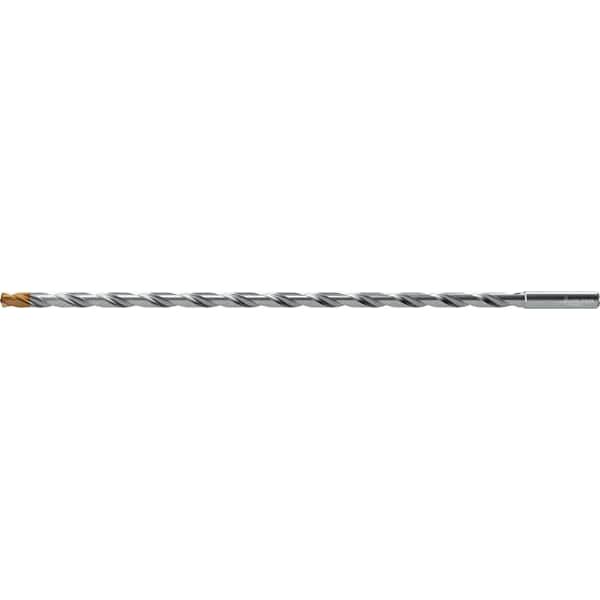

Extra Long Drill Bit, Spiral, 166.00 mm L, 7684375

  • Mfr # 7684375

  • Zoro # G8325749

product price:  $584.99
/ea
Free Shipping & Returns

Key Features

Overall Length
166 mm
Drill Bit Size
3.5 mm
Point Angle
140 Degrees
Flute Length
133 mm
Shank Diameter
4.00 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
7684375
Zoro #
G8325749
UPC #
-
Country of Origin
France

Dimensions

Overall Length
166 mm
Drill Bit Size
3.5 mm
Flute Length
133 mm
Shank Diameter
4.00 mm
Depth:Dia. Ratio
30xD
Shank Dia.
4 mm
Maximum Drilling Depth
127.00 mm
Drill Point Length
0.63 mm
Drill Diameter Tolerance
H7
Drill Length Class
Extended-Length
Shank Length
28 mm
Wire Rope Length
166 mm

Details

Item
Extra Long Drill Bit
Point Angle
140 Degrees
Number of Flutes
2
Material - Machining
Carbide
Finish - Machining
TiSiAlCrN/AlTiN
Coolant Through
Coolant Through
List Number
DC160
Drill Bit Point Angle
140 Degrees
Flute Type
Spiral
Decimal Equivalent
0.1378 in
Measurement System
Metric
Cutting Direction
Right Hand
Point Type
Conventional Point
Standards
TP-NORM 69X
Primary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Steel, Titanium
Material Grade - Machining
WJ30EU
Sheeter Drill
No
Drill Bit Point Type
Conventional Point
Shank Type - Machining
Straight
Spiral Direction
Right Hand
Number of Coolant Holes
2
Coolant Fed
Coolant Through
Primary Material Application ISO Code
K, N, P, S
Secondary Material Application ISO Code
H, M, O
Secondary Material Application
Graphite, Plastic, Stainless Steel
Web Thinning
Web Thinning

Description

Extra Long Drill Bit, Drill Bit Size 3.5 mm, Drill Bit Point Angle 140 Degrees , Conventional Point, Carbide, TiSiAlCrN/AlTiN, Material Grade - Machining WJ30EU, Maximum Drilling Depth 127.00 mm, Metric, 30xD

Restrictions

WARNING: Cancer For more information go to www.P65Warnings.ca.gov
